Shop DIXON

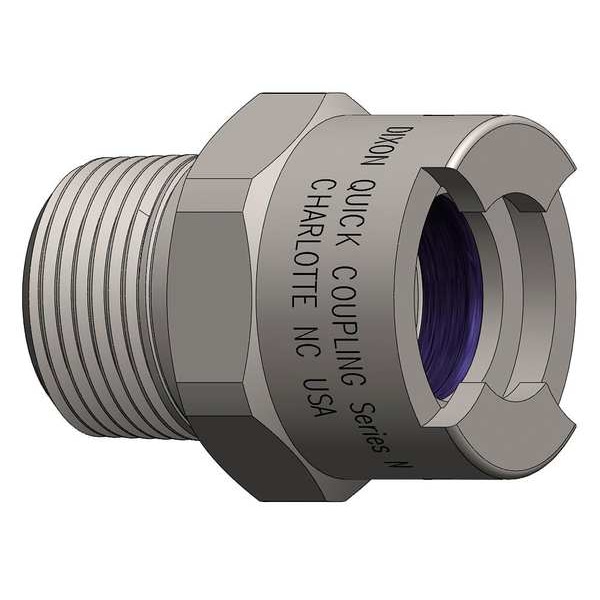

Female to Bowes Coupler, (M)NPT, 1/2, Brass

  • Mfr # 4NM4-B

  • Zoro # G0696692

product price:
$
23.49
/ea

Key Features

Interchange Type
Bowes
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Threaded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4NM4-B
Zoro #
G0696692
UPC #
-
Country of Origin
United States

Dimensions

Hose Fitting Size
1/2 in
Coupling Size
1/2 in
Thread Size
1/2"-14
Overall Length
1 7/8 in
Body Size - Quick Connect Air Couplings
1/2 in
Max. Outside Dia.
1 1/2 in
Wire Rope Length
1 7/8 in
Length
1 7/8 in

Details

Item
Quick Connect Air Coupling
Interchange Type
Bowes
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Threaded
Finish/Coating
Zinc-Plated
Max. Flow Rate
5,776.64 lpm
Coupling Locking Type
Push-to-Connect
Seal Material
Nitrile
Includes Valve
No
Color
Yellow
Temp. Range
-40 Degrees to 250 Degrees F
Application
On End of Hose or Pipe
Max. Working Pressure @ 70 F
300 psi
Barbed
No
For Use With
Bowes Style
For Hose I.D.
1/2 in
Connection Thread Type
NPT

Description

The DIXON - 4NM4-B is a hose coupling configured for push-to-connect locking for tool-free connection and disconnection. Constructed of brass with a zinc plated finish and nitrile seals, it includes nitrile seals for sealing performance within the specified operating conditions. This coupling is compatible with Bowes style interchange standards and does not include an integrated valve. It accommodates 1/2 inch hose inner diameter and hose fitting size, with a maximum working pressure of 300 psi at 70°F and a maximum flow rate of 5,776.64 liters per minute. It is intended for use on pneumatic and fluid line connections within the specified working pressure and temperature ranges.

Key Features:

  • Material: Brass with zinc plated finish
  • Connection type: 1/2" -14 NPT male thread
  • Coupling component: Socket with push-to-connect locking type
  • Hose fitting gender: Male
  • Hose fitting and coupling size: 1/2 inch
  • Seal material: Nitrile
  • Color: Yellow
  • Maximum working pressure: 300 psi @ 70°F
  • Maximum flow rate: 5,776.64 lpm
  • Temperature range: -40°F to 250°F
  • Overall length: 1.88 inches
  • Maximum outside diameter: 1.5 inches
  • Interchange type: Bowes
  • Application: On end of hose or pipe
  • Includes valve: No
  • Barbed: No
