Shop DIXON

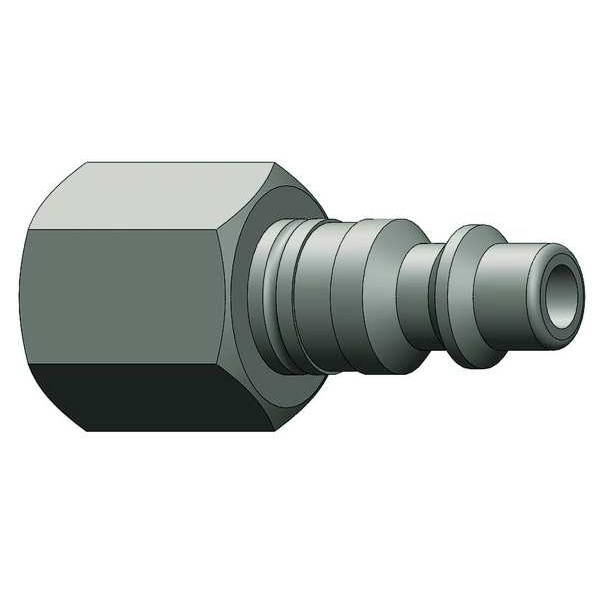

Female to Industrial Plug, (F)NPT, 1/4, SS

  • Mfr # D2F2-S
  • Zoro # G0459663
product price:
$
9.49
/ea

Key Features

Interchange Type
Industrial
Material
Stainless Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
Threaded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D2F2-S
Zoro #
G0459663
UPC #
-
Country of Origin
United States

Dimensions

Hose Fitting Size
1/4 in
Coupling Size
1/4 in
Thread Size
1/4"-18
Overall Length
1 11/16 in
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
13/16 in
Wire Rope Length
1 11/16 in
Length
1 11/16 in

Details

Item
Quick Connect Air Coupling
Interchange Type
Industrial
Material
Stainless Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
Threaded
Finish/Coating
Zinc-Plated
Max. Flow Rate
764.55 lpm
Coupling Locking Type
Sleeve
Seal Material
Nitrile
Includes Valve
No
Color
Silver
Temp. Range
-40 Degrees to 250 Degrees F
Application
On End of Hose or Pipe
For Hose I.D.
1/4 in
Barbed
No
Max. Working Pressure @ 70 F
500 psi
Connection Thread Type
NPT
Shell Material
Stainless Steel
Wire Color
Silver

Description

The DIXON - D2F2-S is designed for on-end of hose or pipe applications. It allows coupling and uncoupling using the sleeve locking mechanism without the use of tools. Constructed primarily from 303 stainless steel with a zinc-plated finish, it is intended for use in pneumatic, hydraulic, and general-purpose fluid transfer systems within the specified pressure and temperature ranges. The coupling is specified for use with hoses having a 1/4 in inner diameter and 1/4 in NPT female thread connections.

Key Features:

  • Coupling size: 1/4 in with matching hose fitting size of 1/4 in.
  • Material: 303 stainless steel body with zinc plating for sealing.
  • Connection type: Female NPT thread, 1/4" -18 thread size.
  • Seal material: Nitrile, uses a nitrile seal for sealing.
  • Overall length: 1.69 in (1 11/16 in).
  • Maximum outside diameter: 0.8125 in (13/16 in).
  • Interchange type: industrial standard
  • Coupling component type: Plug with a sleeve locking mechanism.
