Male to Bowes Nipple, (M)NPT, 1/2, Brass
Mfr # N4M6-B
Zoro # G2874286
Key Features
Specifications
Product Information
- MFR #
- N4M6-B
- Zoro #
- G2874286
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/2 in
- Coupling Size
- 1/2 in
- Thread Size
- 1/2"-14
- Overall Length
- 3 5/8 in
- Body Size - Quick Connect Air Couplings
- 1/2 in
- Max. Outside Dia.
- 1 5/16 in
- Wire Rope Length
- 3 5/8 in
- Length
- 3 5/8 in
Description

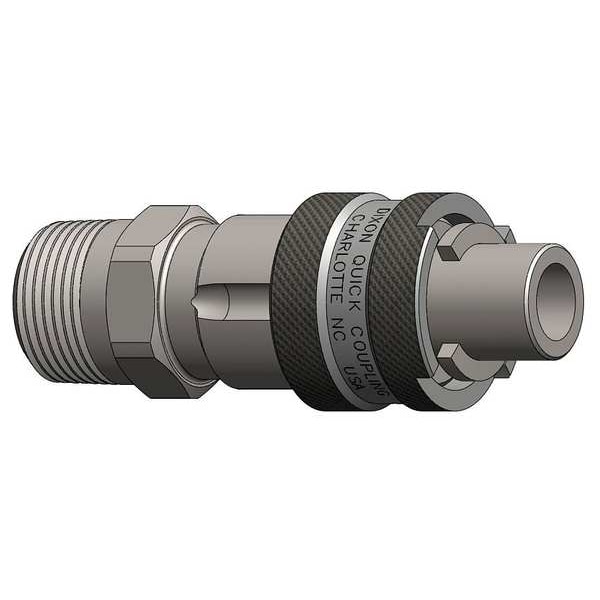

The DIXON - N4M6-B is a brass quick connect hose coupling compatible for connection to hoses or pipes using a male 1/2" NPT thread. It has a male 1/2" NPT thread and is compatible with Bowes standard couplers and fittings. The coupling uses a sleeve locking mechanism to provide a seal using a sleeve locking mechanism and a nitrile seal for fluid-tight connections (see stated pressure and temperature ratings). It is rated for operation from -40°F to 250°F. The fitting does not include an internal valve and is finished with a zinc plating and a yellow color coating.
Key Features:
- Material: Brass body with nitrile seal for fluid-tight connections.
- Connection: Male 1/2" NPT thread for hose or pipe attachment.
- Coupling locking type: Sleeve locking mechanism for engagement and disengagement.
- Hose fitting size: 1/2 inch nominal to fit hoses with 3/4 inch inner diameter.
- Interchange type: Bowes standard compatible with corresponding couplers.
- Dimensions: Overall length of 3.63 inches; maximum outside diameter of 1.31 inches.
- Finish/coating: Zinc plated with primary yellow color for visibility or identification.
