  9. Knurling Tool, Revolving, 6 1/4 In OAL
Shop All Knurling Tools
Dorian

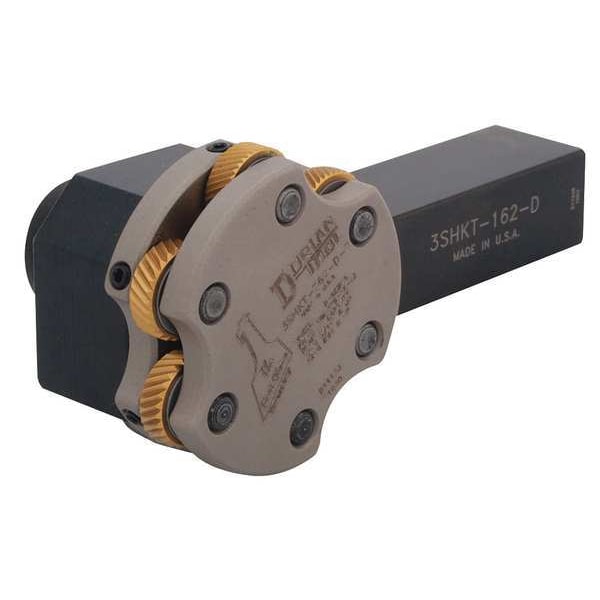

Knurling Tool, Revolving, 6 1/4 In OAL

product price: $587.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Revolving
  • Series 3SHKT
  • Capacity 5/16" and Up
  • Pattern Diamond Or Straight Shoulderless
  • Feed In And End
See all product information

Product Information

  • Brand Dorian
  • MFR # 3SHKT-100-M
  • Zoro # G7520475
  • UPC #
    733101215409
  • Country of Origin United States
  • Category Knurling Tools

Dimensions

Overall Length (In.) 6-1/4
Head Height (In.) 2-1/2
Shank Width (In.) 1
Shank Length (In.) 4
Shank Height (In.) 1
Head Width (In.) 2-3/8
Head Length (In.) 2-3/8
Head Length 2 3/8 in
Overall Length 6 1/4 in
For Knurl Outside Dia. 1 in
Head Height 2 1/2 in
For Knurl Hole Dia. 5/16 in
Shank Width 1 in
Shank Height 1 in
Shank Length 4 in
Head Width 2-3/8 in
For Knurl Face Width 0.2360 in

Details

Item Knurling Holder
Type Revolving
Series 3SHKT
Capacity 5/16" and Up
Pattern Diamond Or Straight Shoulderless
Feed In And End
Distance To Shoulder (In.) 0.252
Shank Square
For Use With M Knurl Wheels
Wheel 6
Application For Right Or Left-Hand Applications, Head Swivels With (3) Pairs Of Knurl Wheels
Includes (2) 16 TPI, (2) 25 TPI And (2) 35 TPI Diagonal Knurl Wheels For Diamond Pattern
Knurl Series 3SHKT
Features Diameter Adjustment Screw Regulates the Depth of the Knurl Pattern and the Diameter Size;For Twin Wheel and Single Wheel Knurling
Knurl Holder Application For Right Or LeftHand Applications, Head Swivels With (3) Pairs Of Knurl Wheels
Number of Knurls Required 6
Knurls Included Yes
Shank Shape Square
Shank Material Alloy Steel

Description

Knurling Holder, Alloy Steel, Features Diameter Adjustment Screw Regulates the Depth of the Knurl Pattern and the Diameter Size;For Twin Wheel and Single Wheel Knurling, For Knurl Face Width 0.2360 in, For Knurl Hole Dia. 5/16 in
