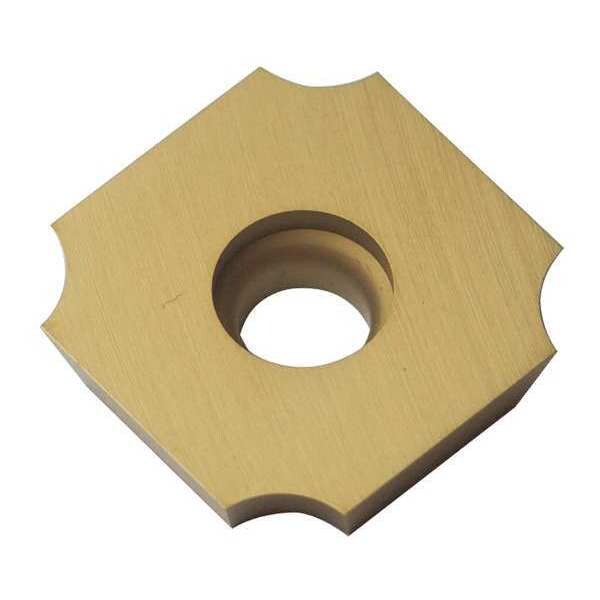

Dorian Milling Insert, SDGX-19C05-E-DUP25UT 95250 - main

Milling Insert, SDGX-19C05-E-DUP25UT

  • Mfr # 95250

  • Zoro # G9247454

product price: $60.39
/ea
Sold in multiples of 2 for $120.78

Key Features

Insert Shape
Square
Grade
DUP25UT
Cutting Direction
Neutral
No. of Edges
4
Mounting Style
Torx Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
95250
Zoro #
G9247454
UPC #
-
Country of Origin
United States

Dimensions

Nose Radius
0.078"
Mounting Hole Dia.
0.2200 in
Insert Thickness
0.188"
Thickness
0.188 in
Corner Radius
0.0780 in
Cutting Edge Length
3/4 in

Details

Insert Shape
Square
Grade
DUP25UT
Cutting Direction
Neutral
No. of Edges
4
Mounting Style
Torx Screw
Insert Material
Carbide
ISO Number
SDGX-1904C20-E-DUP25UT
Insert Style
SDGX
For Use With
CNMG Recycle Milling Cutter
Item
Square Milling Insert
Workpiece Compatibility
Cast Iron (K)
Rake
15 Degrees
Insert Application
Medium
Inscribed Circle
3/4 in
ANSI Number
SDGX-19C05-E-DUP25UT
Coating
PVD-TiN/TiAlN/TiN
Chip-Breaker
No
Finish - Machining
TiAlN+TiN
For Toolholder
REC15-200-CN4-075, REC15-200-CN4-100, REC15-200-CN4-R8, REC15A-300-CN4-100, REC15A-400-CN4-150
Material - Machining
Carbide
Cutting Application
Milling
Manufacturer Grade
DUP25UT
Primary Material Application ISO Code
K, M, N, P, S
Primary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Measurement System
Fractional Inch
Number of Cutting Edges
4
Shape
Square
Insert Holding Type
Torx Screw
ANSI Code
SDGX-19C05-E
Coating Process
PVD

Description

Square Milling Insert, Inscribed Circle 3/4 in, Rake 15 Degrees
