  11. Tool Post, QUADRA, QITP35N, 14-17 In Swing
Dorian Tool Post, QUADRA, QITP35N, 14-17 In Swing QITP35N - main

Tool Post, QUADRA, QITP35N, 14-17 In Swing

  • Mfr # QITP35N

  • Zoro # G2223347

product price: $2,234.99
/ea
Free Shipping & Returns

Key Features

For Use With
QITP35N Holders
Thread
5/8-18
Series
QITP35N
Number of Positions
24
Height Adjustment
1.445 to 2.224"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QITP35N
Zoro #
G2223347
UPC #
-
Country of Origin
United States

Dimensions

Height Adjustment
1.445 to 2.224"

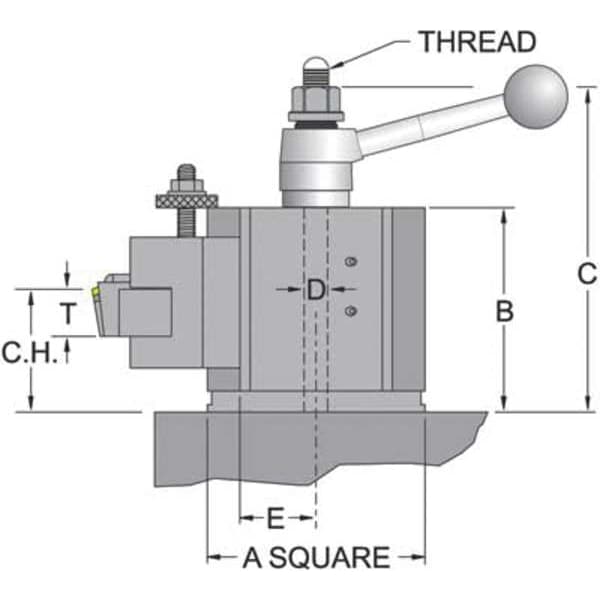

Dimension A (In.)
3.500
Center Height
1.850"
Dimension F (In.)
1.835
Dimension D (In.)
0.625
Dimension B (In.)
3.460
Dimension C (In.)
6.415
Dimension E (In.)
1.200
Thread Size
5/8"-18
Body Height
3.46 in
Tool Post Height
6.4150 in
Max. Centerline Height
14 in to 17 in
Body Width
3.5 in
Overall Height
6.415 in
Tool Holder Size - Minimum
3/4 in
Centerline Height - Maximum
2.225 in
Tool Holder Size - Maximum
1 in

Details

For Use With
QITP35N Holders
Thread
5/8-18
Item
Tool Post
Series
QITP35N
Number of Positions
24
Swing (In.)
14 to 17
Features
(2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently
Type
Quadra 4-Station
Includes
Blank T-Nut for Customer to Machine to Own Specifications
Lock
Positive
Capacity
3/4 to 1"
Lathe Swing
14 in to 17 in
Centerline-to-Body
1.245 in
Compatible Manufacturer Model Number
DQ35CXA-41S-1500-DUAL, DQ35CXA-41SM-40-DUAL, QITP35N-1, QITP35N-2, QITP35N-36, QITP35N-4-1000-DUAL, QITP35N-41-1250-DUAL, QITP35N-41M-32-DUAL, QITP35N-4M-25-DUAL, QITP35N-5-4, QITP35N-7-71C, QITP35N-881-OE
Compatible Lathe Swing - Maximum
17 in
Tool Post Series
QITP35N
Compatible Lathe Swing - Minimum
14 in
Repeatability
0.00005 in

Description

Tool Post, Quadra 4-Station, Lathe Swing 14 in to 17 in, Max. Centerline Height 14 in to 17 in, Series QITP35N, Body Height 3.46 in, Tool Post Height 6.4150 in, Thread Size 5/8 In.-18, Centerline-to-Body 1.245 in
