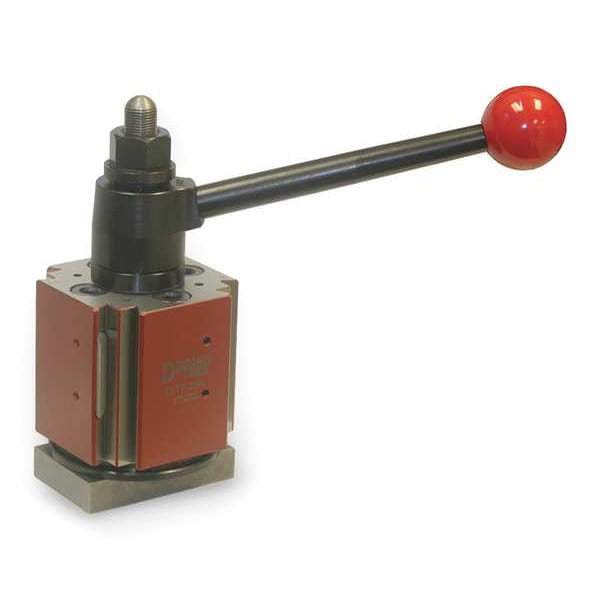

Tool Post, QUADRA, QITP60N, 25 In+ Swing

  • Mfr # QITP60N

  • Zoro # G8158902

product price:
$
5,300.99
/ea
Free Shipping & Returns

Key Features

Type
Quadra 4-Station
Series
QITP60N
Swing (In.)
25 and Over
Capacity
1.500"
Height Adjustment
2.750 To 4.129"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QITP60N
Zoro #
G8158902
UPC #
-
Country of Origin
United States

Dimensions

Height Adjustment
2.750 To 4.129"
Dimension C (In.)
9.855
Dimension B (In.)
5.615
Dimension A (In.)
6.000
Dimension F (In.)
3.440
Center Height
3.440"
Dimension E (In.)
2.207
Dimension D (In.)
1.125
Tool Post Height
9.8550 in
Body Height
5.615 in
Thread Size
11/8"-12
Max. Centerline Height
25 in
Overall Height
9.855 in
Centerline Height - Maximum
4.129 in
Tool Holder Size - Maximum
1 1/2 in
Body Width
6 in

Details

Item
Tool Post
Type
Quadra 4-Station
Series
QITP60N
Swing (In.)
25 and Over
Capacity
1.500"
Includes
Blank T-Nut for Customer to Machine to Own Specifications
Number of Positions
24
Features
(2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently
Lock
Positive
Thread
1 1/8-12
For Use With
QITP60N Holders
Lathe Swing
25 in and Over
Centerline-to-Body
2.207 in
Compatible Lathe Swing - Minimum
25 in
Repeatability
0.00005 in
Compatible Manufacturer Model Number
DQ60EA-41S-3000-DUAL, DQ60EA-41SM-80-DUAL, QITP60N-1, QITP60N-2, QITP60N-4-2000-DUAL, QITP60N-41-2500-DUAL, QITP60N-41M-60-DUAL, QITP60N-4M-50-DUAL, QITP60N-5-5, QITP60N-7-71C
Tool Post Series
QITP60N

Description

Tool Post, Quadra 4-Station, Lathe Swing 25 in and Over, Max. Centerline Height 25 in, Series QITP60N, Body Height 5.615 in, Tool Post Height 9.8550 in, Thread Size 11/8 In.-12, Centerline-to-Body 2.207 in
