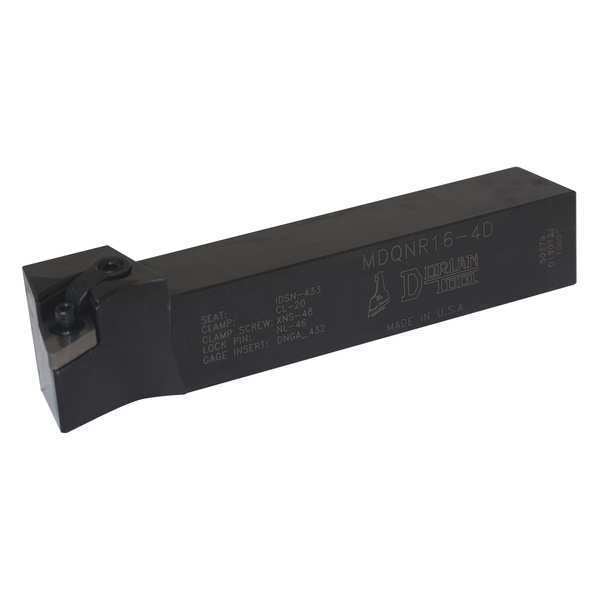

Dorian Turning Toolholder, Sq., DNMG-432 Inserts 50379 - main

Turning Toolholder, Sq., DNMG-432 Inserts

  • Mfr # 50379

  • Zoro # G9247463

product price: $130.99
/ea
Free Shipping & Returns

Key Features

For Use With
DNMG-432 Inserts
Shank
Square
Type
Square Shank
Shank Width (In.)
1
Shank Dia. (In.)
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50379
Zoro #
G9247463
UPC #
-
Country of Origin
United States

Dimensions

Shank Width (In.)
1
Shank Dia. (In.)
1
Insert Thickness (In.)
0.187
Overall Length (In.)
6
Shank Height (In.)
1
Shank Length
6
Insert Seat Size
0.500
Shank Width
1 in
Overall Length
6 in
Insert Size
432
Head Length
1.3700 in
Shank Height
1 in
Cutting Height
1 in

Details

Item
Indexable Turning Toolholder
For Use With
DNMG-432 Inserts
Shank
Square
Type
Square Shank
Shim
IDSN-433
Inscribed Circle (In.)
0.500
Material
4140
Clamp Screw
XNS-48
Lock
Multi-Lock
Clamp
CL-20
Rake
Negative
Cutting Edge Type
Indexable Carbide
Left/Right Hand
Right
Lock Pin
NL-46
Number of Inserts Required
1
Rake Angle (Deg.)
7
Nomenclature
ANSI
Style
Negative
Insert Shape
55 Degrees Diamond
Cutting Direction
Right Hand
Insert Holding Type
Clamp and Lock Pin
Insert Inscribed Circle
1/2 in
Perpendicular Holder
No
Insert Style
DNM.
Offset Shank
Yes
ANSI Code
MDQNR16-4D
Side-to-Cutting Tip
1-1/4 in
Cutting Application
Turning
Insert Clearance Angle
0 Degrees
Side Cutting Edge Angle
17.5 Degrees
Compatible Hardware
Clamp CL-20, Clamp Screw XNS-48, Lock Pin NL-46, Optional Seat Screw S-46, Seat IDSN-433
Toolholder Style
MDQN

Description

Indexable Turning Toolholder, MDQN, Insert Style DNM., Overall Length 6 in
