Shop DORIAN

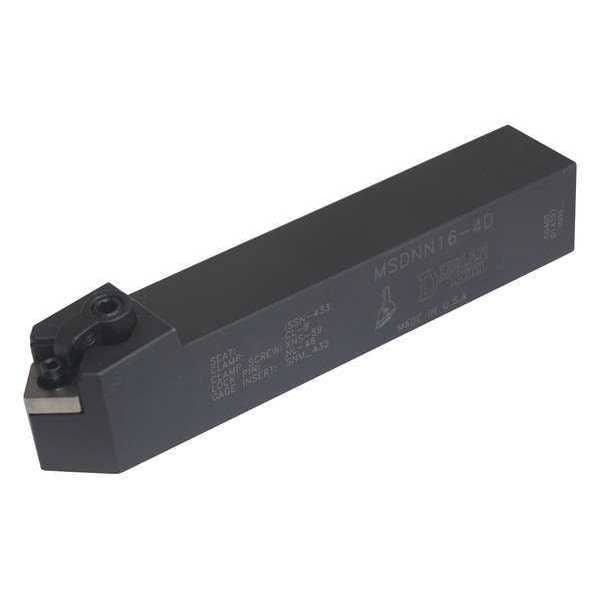

Turning Toolholder, Sq., Right, SNMG-432

  • Mfr # 50402
  • Zoro # G9247472
product price:
$
86.99
/ea

Key Features

For Use With
SNMG-432 Inserts
Insert Thickness (In.)
0.187
Insert Seat Size
0.500
Shim
ISSN-433
Shank Height (In.)
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50402
Zoro #
G9247472
UPC #
-
Country of Origin
United States

Dimensions

Insert Thickness (In.)
0.187
Insert Seat Size
0.500
Shank Height (In.)
1
Shank Dia. (In.)
1
Shank Width (In.)
1
Overall Length (In.)
6
Shank Length
6
Shank Width
1 in
Overall Length
6 in
Insert Size
432
Head Length
1-3/8 in
Shank Height
1 in
Cutting Height
1 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Indexable Turning Toolholder
For Use With
SNMG-432 Inserts
Shim
ISSN-433
Insert Shape
Square
Lock
Multi-Lock
Cutting Edge Type
Indexable Carbide
Shank
Square
Left/Right Hand
Right
Clamp Screw
XNS-59
Style
Negative
Type
Square Shank
Inscribed Circle (In.)
0.500
Material
4140
Nomenclature
ANSI
Lock Pin
NL-46
Clamp
CL-19
Rake Angle (Deg.)
7
Rake
Negative
Number of Inserts Required
1
Cutting Direction
Neutral
Offset Shank
No
Cutting Application
Turning
Side Cutting Edge Angle
45 Degrees
Perpendicular Holder
No
Insert Holding Type
Clamp and Lock Pin
Toolholder Style
MSDN
Compatible Hardware
Clamp CL-9, Clamp Screw XNS-59, Lock Pin NL-46, Optional Seat Screw S-46, Seat ISSN-433
Insert Style
SNM.
ANSI Code
MSDNN16-4D
Insert Inscribed Circle
1/2 in
Insert Clearance Angle
0 Degrees

Description

Indexable Turning Toolholder, MSDN, Insert Style SNM., Overall Length 6 in
