  11. Turning Toolholder, TNMG, MTANL08-2A, LH
Shop All Indexable Toolholders
Dorian

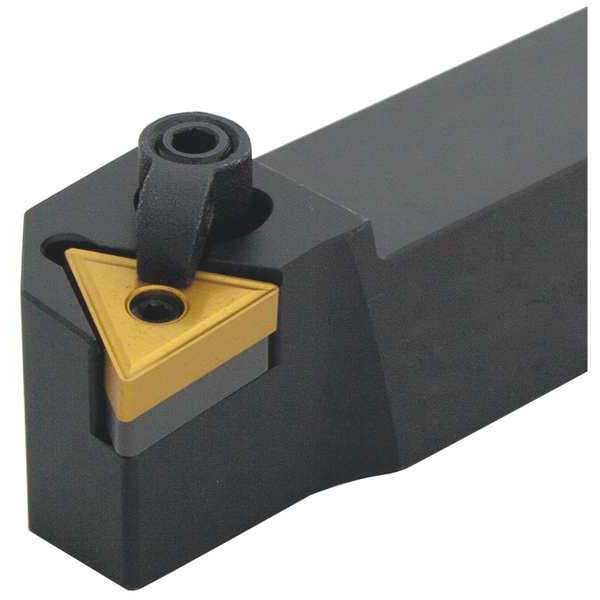

Turning Toolholder, TNMG, MTANL08-2A, LH

product price: $69.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type TNMG Holder
  • Clamp CL-19
  • Rake Negative
  • Style MTANL08-2A
  • Insert Shape Triangle
See all product information

Product Information

Dimensions

Overall Length 4 in
Insert Size 221
Shank Height 1/2 in
Head Length 7/8 in
Shank Width 1/2 in
Cutting Height 1/2 in
Width Offset 0.500"

Details

Item Indexable Turning Toolholder
Type TNMG Holder
Clamp CL-19
Rake Negative
Style MTANL08-2A
Insert Shape Triangle
Clamp Screw XNS-36
Shank Square
Insert Screw NL-23
Cutting Direction Left Hand
Approach Angle 90 Degrees
Shank Material Alloy Steel
ISO Number MTANL082A
ANSI Code MTANL082A
Toolholder Style MTAN
Side Cutting Edge Angle 0 Degrees
Insert Style TNM.
Insert Clearance Angle 0 Degrees
Insert Holding Type Clamp and Lock Pin
Features Hardened to 44 HRC
Insert Inscribed Circle 1/4 in
Cutting Application Turning
Lead Angle 0 Degrees
Mounting Style Multi-Lock
Rake Angle 7 Degrees
Inscribed Circle 0.250"

Description

Indexable Turning Toolholder, MTAN, Insert Style TNM., Overall Length 4 in
