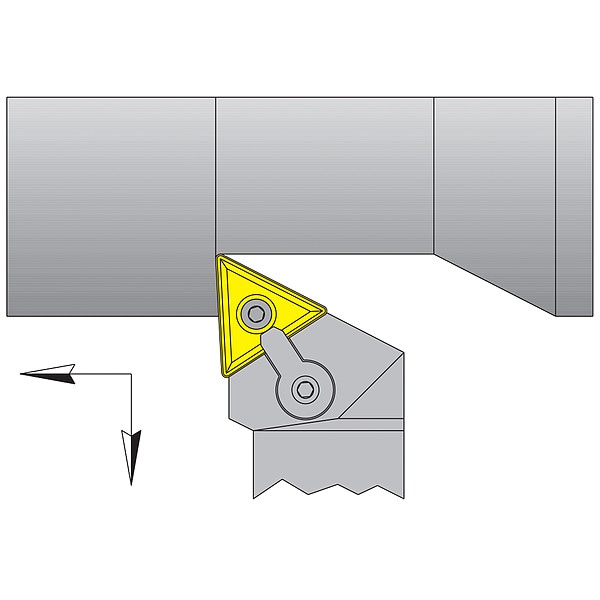

Turning Toolholder, TNMG, MTJNR16-4D, RH

  • Mfr # 73310150902

  • Zoro # G8236225

product price:
$
89.19
/ea

Key Features

Rake
Negative
Shim
ITSN-433
Clamp Screw
XNS-510
Insert Shape
Triangle
Clamp
CL-9
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
73310150902
Zoro #
G8236225
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
6 in
Insert Size
432
Cutting Height
1 in
Shank Height
1 in
Head Length
1-1/4 in
Shank Width
1 in
Width Offset
1.250"
Wire Rope Length
6 in
Length
6 in

Details

Item
Indexable Turning Toolholder
Rake
Negative
Shim
ITSN-433
Clamp Screw
XNS-510
Insert Shape
Triangle
Clamp
CL-9
Type
TNMG Holder
Insert Screw
NL-46
Style
MTJNR16-4D
Shank
Square
Cutting Direction
Right Hand
Shank Material
Alloy Steel
Insert Inscribed Circle
1/2 in
Toolholder Style
MTJN
Side Cutting Edge Angle
-3 Degrees
ANSI Code
MTJNR164D
Cutting Application
Turning
Insert Holding Type
Clamp and Lock Pin
Insert Style
TNM.
ISO Number
MTJNR164D
Features
Hardened to 44 HRC
Insert Clearance Angle
0 Degrees
Inscribed Circle
0.500"
Mounting Style
Multi-Lock
Rake Angle
7 Degrees
Lead Angle
3 Degrees

Description

Indexable Turning Toolholder, MTJN, Insert Style TNM., Overall Length 6 in
