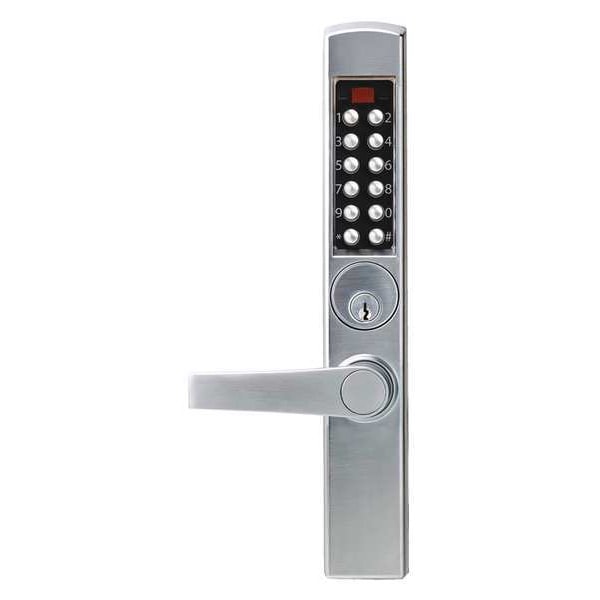

Dormakaba Electronic Locks, 3000, Narrow Stile E3065MSNL-626-41 - main

Electronic Locks, 3000, Narrow Stile

  • Mfr # E3065MSNL-626-41

  • Zoro # G1616889

product price: $809.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Storeroom
Key Override Options
Schlage C Keyway
Hand
Nonhanded
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E3065MSNL-626-41
Zoro #
G1616889
UPC #
-
Country of Origin
United States

Dimensions

Door Thickness
1-3/4 in
Latch Length
1/2 in
Outside Width
1 3/4 in
Latch Front Size
1-1/8 in X 2 in
Overall Width
1 3/4 in
Latch Front Length
2 in
Latch Front Width
1 1/8 in
Door Thickness - Maximum
1 3/4 in

Details

Item
Electronic Keyless Lock
Handle Type
Lever
Function
Storeroom
Key Override Options
Schlage C Keyway
Hand
Nonhanded
Finish
Satin Chrome
Backset
2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Storeroom
Case Material
Metal
Grade
1
Weather Resistant
Yes
Max. User Codes
100
Series
3000
ADA Compliant
Yes
Keypad Material
Metal
Number of Keys
2
Operating Temp. Range
-31 Degrees to 130 Degrees F
Power Source
(4) AA Batteries
For Use With
Commercial Doors
Access Method
Keypad
Event Audit Trail
9000
Lock Material
Metal
Battery Life
1 yr
Fire Rating
Yes
Max. Proximity Range
At Lock
Mounting Style
Narrow Stile
Standards
UL Listed
Timed Entry Allowance
1 to 99 sec
Network Interface
AL-DTM2
Cylinder Core Type
Conventional Core Cylinder
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Non-Handed
Event Audit Trails
9,000
Temperature - Maximum
130 Degrees F
Lockset Handle Type
Lever
Lockset Type
Electrical
Temperature - Minimum
-31 Degrees F
Lockset Material
Metal
User Codes - Maximum
300

Description

Electronic Keyless Lock, Function Storeroom, Access Method Keypad, Mounting Style Narrow Stile, Lock Material Metal, Finish Satin Chrome, Series 3000, Handle Type Lever, Door Thickness 1-3/4 in, Key Override Options Schlage C Keyway, Hand Nonhanded, Network Interface AL-DTM2, Outside Width 1 3/4 in, Keypad Material Metal, Power Source (4) AA Batteries, Battery Life 1 yr, Operating Temp. Range -31 Degrees to 130 Degrees F, Max. User Codes 100, Fire Rating Yes, ADA Compliant Yes, Grade 1
