Shop DORMAKABA

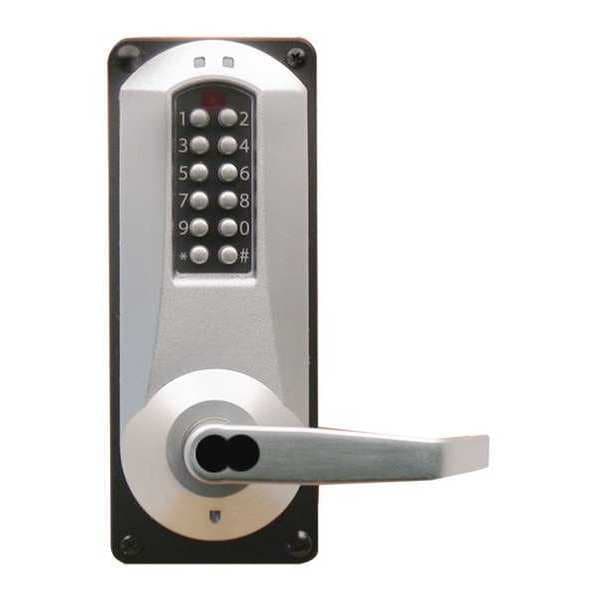

Electronic Locks, 5000, Mortise, 8-7/8 in.H

  • Mfr # E5086BWL-626-41

  • Zoro # G1616651

product price:
$
1,441.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Storeroom
Key Override Options
Large Format Removable Cores; Small Format Interchangeable Core
Hand
Nonhanded
Finish
Satin Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E5086BWL-626-41
Zoro #
G1616651
UPC #
-
Country of Origin
United States
Item
Electronic Keyless Lock
Handle Type
Lever
Function
Storeroom
Key Override Options
Large Format Removable Cores; Small Format Interchangeable Core
Hand
Nonhanded
Finish
Satin Chrome
Backset
2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Entrance
Case Material
Solid Cast
Grade
1
Weather Resistant
Yes
Max. User Codes
100
Series
5000
Operating Temp. Range
-31 Degrees to 130 Degrees F
Number of Keys
0
Mounting Style
Mortise
Keypad Material
Solid Metal
Standards
ANSI/BHMA A156.25
Event Audit Trail
1000
Max. Proximity Range
At Lock
Network Interface
AL-DTM2
Battery Life
Up to 180,000 Cycles
Lock Material
Metal
Power Source
(4) AA Batteries
For Use With
Commercial Doors
Timed Entry Allowance
2 to 20 sec
Access Method
Keypad
Fire Rating
3 hr
ADA Compliant
Yes
Includes
Tailpiece
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Operation Type
Push Button
Includes Hardware
Hardware Included
Lockset Type
Electrical
Lockset Material
Solid Cast
ANSI Grade
1
Hand Orientation
Non-Handed
User Codes - Maximum
100
Locking/Unlocking Access - Outside
Keyway
Lockset Handle Type
Lever
Event Audit Trails
9,000
Temperature - Minimum
-31 Degrees F
ANSI/BHMA Finish
Satin Chromium-Plated
Temperature - Maximum
130 Degrees F
Power Source - TS Only
(4) AA Batteries
Power Source - old
(4) AA Batteries

Description

Electronic Keyless Lock, Function Storeroom, Access Method Keypad, Mounting Style Mortise, Lock Material Metal, Finish Satin Chrome, Series 5000, Handle Type Lever, Door Thickness 1-3/4 in, Key Override Options Large Format Removable Cores; Small Format Interchangeable Core, Hand Nonhanded, Network Interface AL-DTM2, Outside Height 8 7/8 in, Outside Width 3 3/8 in, Outside Depth 3 13/16 in, Keypad Material Solid Metal, Power Source (4) AA Batteries, Battery Life Up to 180,000 Cycles
