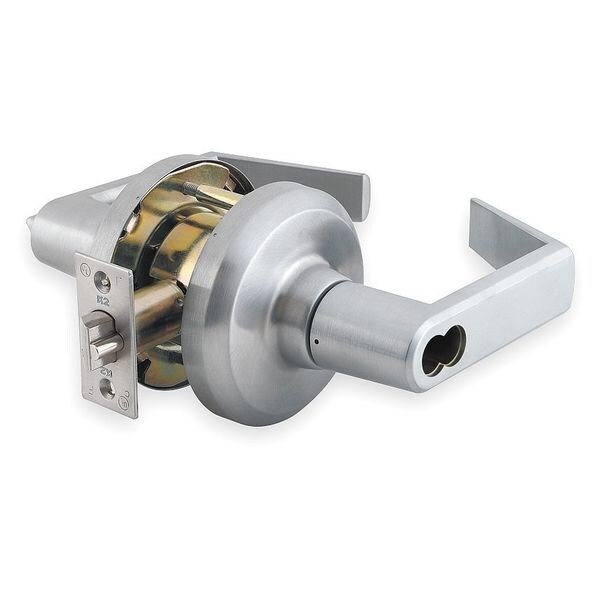

Lever Lockset, Mechanical, Entrance, Grd. 1

  • Mfr # QCL151E626S4478SLC

  • Zoro # G0459024

product price:  $277.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Entrance
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
QCL151E626S4478SLC
Zoro #
G0459024
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 2 in
For Door Thickness
2"
Door Thickness - Maximum
2 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Entrance
Lockset Grade
1
Style
QCL Sierra
Lockset Finish
Satin Chrome
Keyway Type
Less Cylinder
Key Type
Not Keyed
Number of Pins
6
Lockset Fire Rating
3 hr
Strike Type
ANSI
Finish
Satin Chrome
Series
QCL100
For Use With
Small Format Interchangeable Core
Lockset Performance Strength
Heavy Duty
ADA Compliant
Yes
Backset
2 3/4 in
Ligature Resistant
No
Includes
Heavy Duty Torsion Springs
Handle Material
Zinc
Location Type
Apartment Complex, Government Facility, Hotel, Multi-Family, Office Building, Religious, Retail
Item
Door Lockset
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Strike Dim.
4-7/8 in x 1-1/4 in
Number of Keys
0
Mortise/Cylindrical
Cylindrical
Standards
ANSI A117.1, ANSI/BHMA A156.2, California State Reference Code (Formerly Title 19 - Fire Marshal) Hurricane Compliant - Miami DADA N.O.A, UL and cUL Listed
Pins
6
Features
Lost Motion Chassis
Grade
1
Fire Rated
Yes
Function
Entry
Keying
Keyed Different
Application
Commercial, Hospitals, Multiple Family Residential
Material
Zinc
Visual Indicator Message
No Message
Fire Rating
3 hr
Includes Core
Core Not Included
Lockset Function ANSI Code
F109
Failure Mode
Fail Safe or Fail Secure
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Cast Zinc
Lockset Style
QCL Sierra
ANSI Grade
1
UL Fire Rating
UL10B, UL10C
ANSI/BHMA Finish
Satin Chromium-Plated
Latch Bolt/Dead Bolt
Latch Bolt, Spring Latch

Description

Cylindrical Lever, Sierra Style, Satin Chrome Finish, Function Entry, Grade 1, Material Zinc, For Door Thickness 2 In., Backset 2 3/4 In., Front Size Dimension 1 1/8 In., Crossbore Size 2 1/8 In., Keying Different, Number of Keys 2, Pins 6, Required Door Thickness 2, Keyway Type Best F, Standards ANSI/BHMA A156.2 GRADE 1, Fire Rated 3 Hours, For Use With Small Format Interchangeable Core, Includes Hardware
