Shop DORMAKABA

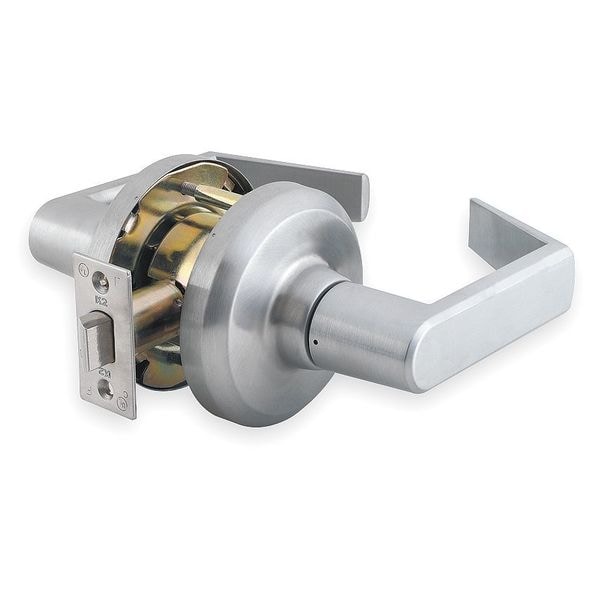

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # QCL130E626S4478S

  • Zoro # G2286986

product price:
$
204.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Includes
Heavy Duty Torsion Springs
Key Type
Not Keyed
Keyway Type
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QCL130E626S4478S
Zoro #
G2286986
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 2 in
For Door Thickness
2"
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
2 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Includes
Heavy Duty Torsion Springs
Key Type
Not Keyed
Keyway Type
None
Location Type
Apartment Complex, Government Facility, Hotel, Multi-Family, Office Building, Religious, Retail
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
QCL100
Style
QCL Sierra
Finish
Satin Chrome
Standards
ANSI A117.1, ANSI/BHMA A156.2, California State Reference Code (Formerly Title 19 - Fire Marshal) Hurricane Compliant - Miami DADA N.O.A, UL and cUL Listed
Number of Keys
0
ADA Compliant
Yes
Lockset Finish
Satin Chrome
Lockset Fire Rating
3 hr
Handle Material
Zinc
Lockset Performance Strength
Heavy Duty
Ligature Resistant
No
Strike Dim.
4-7/8 in x 1-1/4 in
Item
Door Lockset
Mortise / Cylindrical
Cylindrical
Strike Type
ANSI
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Pins
6
Grade
1
Keying
Unkeyed
Fire Rated
Yes
Function
Passage
Application
Commercial, Hospitals, Multiple Family Residential
Material
Zinc
Visual Indicator Message
No Message
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Latch Bolt/Dead Bolt
Latch Bolt, Spring Latch
UL Fire Rating
UL10B, UL10C
ANSI Grade
1
Lockset Function ANSI Code
F75
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
Failure Mode
Fail Safe or Fail Secure
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Inside
Not Lockable
Lockset Style
QCL Sierra
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Knob/Handle Material
Cast Zinc

Description

Cylindrical Lever, Sierra Style, Satin Chrome Finish, Function Passage, Grade 1, Material Zinc, For Door Thickness 2 In., Backset 2 3/4 In., Front Size Dimension 1 1/8 In., Crossbore Size 2 1/8 In., Standards ANSI/BHMA A156.2 GRADE 1, Fire Rated 3 Hours, Includes Hardware
