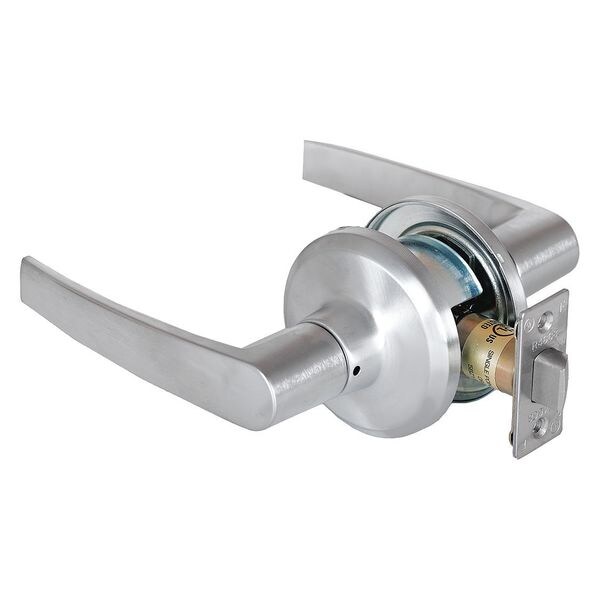

Dormakaba Lever Lockset, Mechanical, Passage, Grd. 2 QTL230A626SA118F - main

Lever Lockset, Mechanical, Passage, Grd. 2

  • Mfr # QTL230A626SA118F

  • Zoro # G1602399

product price: $68.49
/ea

Key Features

Backset
2 3/8 in
Electrical/Mechanical
Mechanical
For Use With
various Door Types
Includes
Heavy Duty Torsion Springs
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QTL230A626SA118F
Zoro #
G1602399
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
Strike Plate Height
2 1/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/8 in
Door Thickness - Minimum
1 3/8 in

Details

Backset
2 3/8 in
Electrical/Mechanical
Mechanical
For Use With
various Door Types
Includes
Heavy Duty Torsion Springs
Key Type
Not Keyed
Keyway Type
None
Location Type
Apartment Complex, Government Facility, Hotel, Multi-Family, Office Building, Religious, Retail
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
QTL200
Style
QTL230 Slate
Finish
Satin Chrome
ADA Compliant
Yes
Item
Door Lockset
Handle Material
Zinc
Lockset Performance Strength
Heavy Duty
Features
Limited Lifetime Mechanical Warranty
Lockset Finish
Satin Chrome
Number of Keys
0
Mortise / Cylindrical
Cylindrical
Lockset Fire Rating
3 hr
Standards
ANSI A117.1, ANSI/BHMA A156.2, UL and cUL Listed
Ligature Resistant
No
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Strike Type
ASA
Strike Dim.
1-1/8 in x 2-1/4 in
Grade
2
Keying
Keyed Alike
Fire Rated
Yes
Visual Indicator Message
No Message
Application
Commercial, Multiple Family Residential
Lockset Type
Mechanical
ANSI Grade
2
Knob/Handle Material
Cast Zinc
Locking/Unlocking Access - Inside
Not Lockable
Lockset Function ANSI Code
F75
Locking/Unlocking Access - Outside
Not Lockable
Ligature-Resistant
Not Ligature-Resistant
Fire Rating
3 hr
ANSI/BHMA Finish
Satin Chromium-Plated
Latch Bolt/Dead Bolt
Latch Bolt
UL Fire Rating
UL10C
Lockset Style
QTL Slate
Performance Grade
2
Hand Orientation
Non-Handed

Description

Lever Lockset,Mechanical,Passage,Grd. 2
