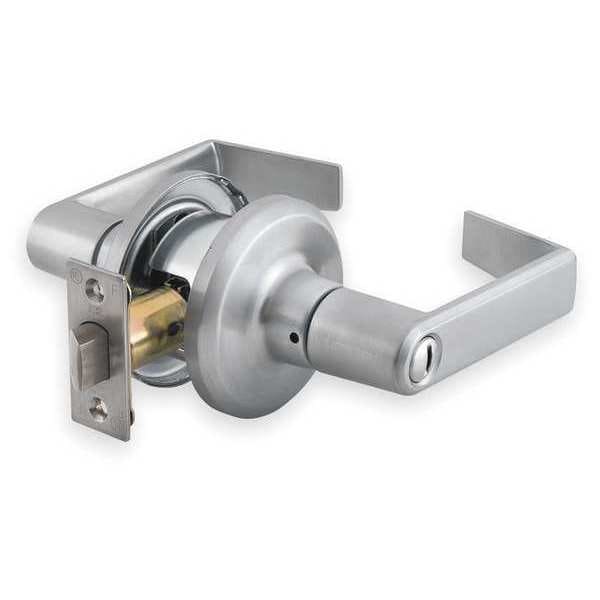

Dormakaba Lever Lockset, Mechanical, Privacy, Grade 2 QTL240E626SA118F - main

Lever Lockset, Mechanical, Privacy, Grade 2

  • Mfr # QTL240E626SA118F

  • Zoro # G2647486

product price: $81.89
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
Series
QTL200
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QTL240E626SA118F
Zoro #
G2647486
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Width
1 1/8 in
Strike Plate Height
2 1/4 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
Series
QTL200
Backset
2 3/8 in
Strike Dim.
1-1/8 in x 2-3/4 in
Includes
Heavy Duty Torsion Springs
Number of Pins
6
Standards
ANSI A117.1, ANSI/BHMA A156.2, UL and cUL Listed
Lockset Fire Rating
3 hr
Lockset Grade
2
Keyway Type
None
Lockset Performance Strength
Medium Duty
Number of Keys
0
Lockset Handle Type
Lever
ADA Compliant
Yes
Mortise/Cylindrical
Cylindrical
Style
QTL Sierra
Mortise / Cylindrical
Cylindrical
Strike Type
T-Strike
Handle Material
Zinc
Ligature Resistant
No
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Pins
6
Features
Limited Lifetime Mechanical Warranty
Function
Privacy
Keying
Unkeyed
Type
Tubular
Material
Zinc
Fire Rated
3 hr.
Application
Commercial, Multiple Family Residential
Visual Indicator Message
No Message
Knob/Handle Material
Cast Zinc
Performance Grade
2
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Type
Mechanical
UL Fire Rating
UL10C
Hand Orientation
Non-Handed
ANSI Grade
2
Lockset Style
QTL Sierra
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F76B
Locking/Unlocking Access - Inside
Push Button

Description

Mechanical, Lever, Cylindrical, Lockset Function Privacy, Lockset Grade 2, Style QTL Sierra, Lockset Finish Satin Chrome, Keyway Type None, Key Type Not Keyed, Standards ANSI A156.2, ADA Compliant No, Lockset Fire Rating 3 hr., Backset 2-3/4 In., Ligature Resistant No, Handle Material Zinc, Includes Hardware, Item Lever, Lockset Performance Strength Medium Duty, Number of Keys 0, Number of Pins 6, Required Door Thickness 1-3/4 In., Series QTL, Strike Dim. 1-1/8 In. x 2-3/4 In.
