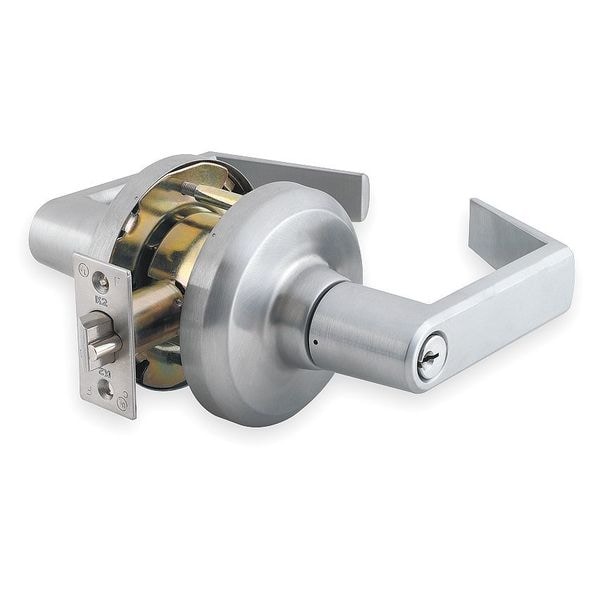

Dormakaba Lever Lockset, Mechanical, Storeroom QCL170E626S4478SSCKD - main

Lever Lockset, Mechanical, Storeroom

  • Mfr # QCL170E626S4478SSCKD

  • Zoro # G1505551

product price: $219.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QCL170E626S4478SSCKD
Zoro #
G1505551
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 2 in
For Door Thickness
2"
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
2 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
1
Style
QCL Sierra
Lockset Finish
Satin Chrome
Keyway Type
Schlage C
Key Type
Keyed Different
Finish
Satin Chrome
Number of Keys
2
Key Material
Nickel Silver
Strike Type
ANSI
Ligature Resistant
No
Lockset Performance Strength
Heavy Duty
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Mortise/Cylindrical
Cylindrical
Lockset Fire Rating
3 hr
Handle Material
Zinc
Standards
ANSI A117.1, ANSI/BHMA A156.2, California State Reference Code (Formerly Title 19 - Fire Marshal) Hurricane Compliant - Miami DADA N.O.A, UL and cUL Listed
Includes
Heavy Duty Torsion Springs
Series
QCL100
Item
Door Lockset
Location Type
Apartment Complex, Government Facility, Hotel, Multi-Family, Office Building, Religious, Retail
Backset
2 3/4 in
ADA Compliant
Yes
Strike Dim.
4-7/8 in x 1-1/4 in
Number of Pins
6
Features
Lost Motion Chassis
Pins
6
Grade
1
Fire Rated
Yes
Keying
Keyed Different
Function
Storeroom
Application
Commercial, Hospitals, Multiple Family Residential
Material
Zinc
Visual Indicator Message
No Message
Performance Grade
1
Fire Rating
3 hr
UL Fire Rating
UL10B, UL10C
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Latch Bolt, Spring Latch
Locking/Unlocking Access - Outside
Keyway
Lockset Function ANSI Code
F86
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Non-Handed
Failure Mode
Fail Safe or Fail Secure
Knob/Handle Material
Cast Zinc
Lockset Style
QCL Sierra
Ligature-Resistant
Not Ligature-Resistant
ANSI Grade
1

Description

Cylindrical Lever, Sierra Style, Satin Chrome Finish, Function Storeroom, Grade 1, Material Zinc, For Door Thickness 2 In., Backset 2 3/4 In., Front Size Dimension 1 1/8 In., Crossbore Size 2 1/8 In., Keying Different, Number of Keys 2, Pins 6, Required Door Thickness 2, Keyway Type SchlageC, Standards ANSI/BHMA A156.2 GRADE 1, Fire Rated 3 Hours, Includes Hardware
