  6. Manual, Hydraulic, Stanley QDC 100, Door Closer, Extra Heavy Duty Interior and Exterior, Gray
Dormakaba Manual, Hydraulic, Stanley QDC 100, Door Closer, Extra Heavy Duty Interior and Exterior, Gray QDC112R689 - main

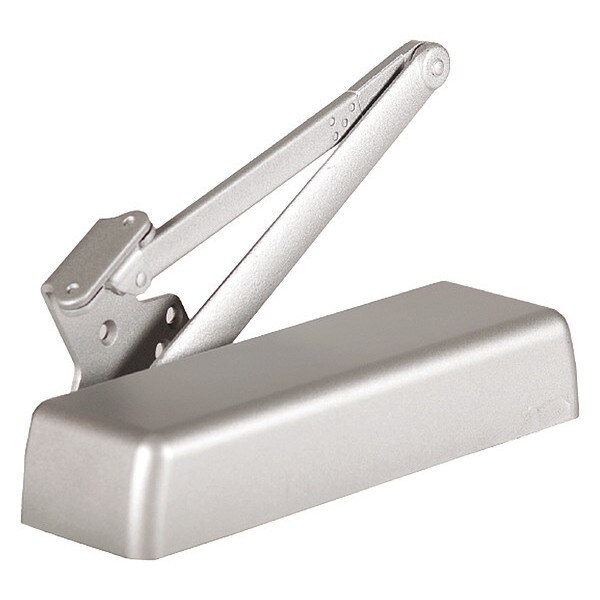

Manual, Hydraulic, Stanley QDC 100, Door Closer, Extra Heavy Duty Interior and Exterior, Gray

  • Mfr # QDC112R689

  • Zoro # G3686496

product price:  $334.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel, Regular, Top Jamb
Closer Performance
Extra Heavy Duty
Closer Series
Stanley QDC 100
Closer Type
Hold Open
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QDC112R689
Zoro #
G3686496
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Housing Depth
3-1/2"
Housing Height
3-1/2"
Housing Length
12-3/16"
Spring Size
Adjustable 1 to 6
Interior Door Width
Up to 58 in
Exterior Door Width
Up to 54 in
Height Between Mounting Holes
2 1/4 in
Spring Size - Maximum
6
Exterior Door Width - Maximum
54 in
Length Between Mounting Holes
4 in
Interior Door Width - Maximum
58 in
Spring Size - Minimum
1

Details

Item
Door Closer
Closer Mounting Style
Parallel, Regular, Top Jamb
Closer Performance
Extra Heavy Duty
Closer Series
Stanley QDC 100
Closer Type
Hold Open
Color
Gray
Finish
Aluminum Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Cast Iron
Arm Type
Tri Pack with Hold Open
Includes
Hardware
Ligature Resistant
No
Mounting Hardware
Included
Arm Material
Carbon Steel
Standards
ANSI/BHMA A156.4, Grade 1; ANSI A117.1, Accessibility Code (ADA Compliant); UL/cUL; UL10C; UL10B
Projection from Wall
2 1/2 in
Max. Door Opening
120 Degrees
ADA Compliant
Yes
Category Type
Parallel Arm
Features
Long Term Usage, Staked Valves
Door Handing
Non-Handed
Series
QDC100
For Use With
Commercial Doors
Hand
Non-handed
Mounting Style
Tri-Pack Standard
Spring Type
Adjustable
Fire Rating
3 hr
Operation Style
Manual
Performance Grade
1
Projection
2 1/2 in
Includes Hardware
Hardware Included
UL Fire Rating
UL10B, UL10C
Interior/Exterior Use
Interior/Exterior
ANSI/BHMA Finish
Aluminum Painted
Door Opening - Maximum
120 Degrees
Ligature-Resistant
Not Ligature-Resistant
Product Type
Door Closer

Description

Door Closer, Stanley QDC 100 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Extra Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI A117.1, ANSI/BHMA A156.4, UL and cUL Listed, ADA Compliant Yes, Finish Aluminum Painted, Arm Material Carbon Steel, Arm Type Tri Pack with Hold Open, Color Gray, Exterior Door Width Up to 54 in
