  13. Push Button Lockset, 5000, Lever

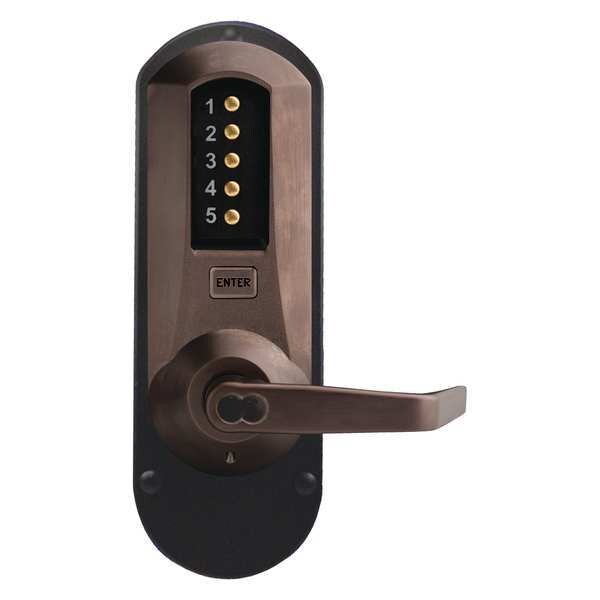

Dormakaba Push Button Lockset, 5000, Lever 5010BWL-744-41 - main

Push Button Lockset, 5000, Lever

  • Mfr # 5010BWL-744-41

  • Zoro # G0490467

product price: $709.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Entry
Key Override Options
Best and Equivalents (6 or 7 Pin)
Hand
Nonhanded
Finish
Satin Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5010BWL-744-41
Zoro #
G0490467
UPC #
-
Country of Origin
United States

Dimensions

Door Thickness
1-3/4"
Latch Length
1/2"
Outside Width
3-1/8"
Outside Depth
3-13/16"
Inside Width
3-1/4"
Inside Depth
2-3/8"
Overall Width
4 1/2 in
Outside Height
7-3/8"
Overall Length
12 1/4 in
Fits Stile Width
5 in
For Door Thickness
1-3/4 in to 2-1/4 in
Manufacturers Warranty Length
1 yr.
Inside Height
9"
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
2 1/4 in
Length - Maximum
12 5/16 in

Details

Item
Mechanical Exit Device Trim
Handle Type
Lever
Function
Entry
Key Override Options
Best and Equivalents (6 or 7 Pin)
Hand
Nonhanded
Finish
Satin Brass
Keypad
5 Button, Vandal Resistant
Backset
2-3/4"
Electrical/Mechanical
Mechanical
Product Type
Mechanical Exit Device Trim
Case Material
Steel
Grade
1
Weather Resistant
Yes
Max. User Codes
1
Series
5000
Application
Exterior Trim for Exit Device
Fire Rating - Door Hardware
3 hr
Color
Dark Bronze
Performance
Heavy Duty
Fire Rated
Yes
Outside Trim Type
Lever
ADA Compliant
Yes
Standards
UL Listed
Cylinder
No
Includes
Universal Mounting Plate
Features
Lock is Easily Programmed Via Keypad without Removing Lock From the Door, Numeric Keypad is Vandal-Resistant with Solid Metal Push Buttons, Provides Exterior Access by Combination While Allowing Free Egress
Fire Rating
3 hr
Visual Indicator Message
No Message
Performance Grade
1
ANSI Grade
1
Includes Hardware
Hardware Included
For Use with Exit Device
Exterior, Rim
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Hand Orientation
Non-Handed

Description

Lever, Mechanical Exit Device Trim, Heavy Duty, 5000 Series, Fire Rated Yes, Satin Brass Finish, Fits Stile Width 5 in, For Door Thickness 1-3/4 in to 2-1/4 in, Application Exterior Trim for Exit Device, Overall Length 12 1/4 in, Overall Width 4 1/2 in, Grade 1, Standards UL Listed, ADA Compliant Yes
