  10. /
  11. Solenoid, Laminated, 1/8 - 1 in, Continuous
Shop All Mechanical Solenoids
Dormeyer

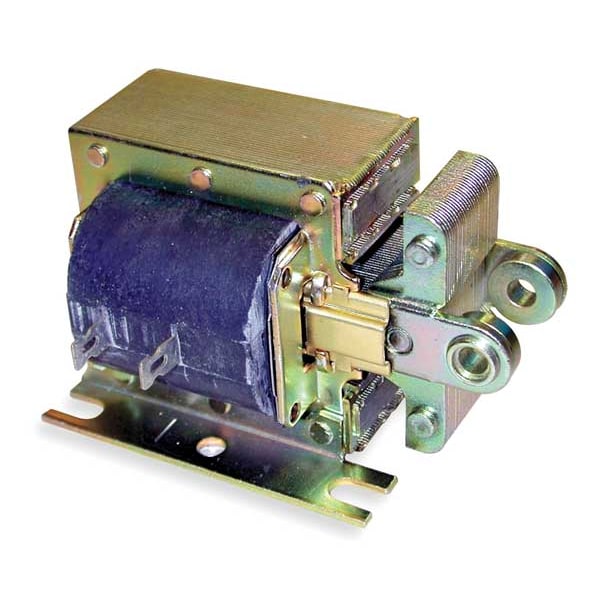

Solenoid, Laminated, 1/8 - 1 in, Continuous

product price: $73.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Solenoid Type Laminated
  • Stroke Range 1/8 in to 1 in
  • Pull Force Range 88.0 to 168.0 oz
  • Amps @ Max. Stroke 3.2 A
  • Terminals Solder Lug Coil
See all product information

Product Information

Dimensions

Depth 2 1/16 in
Length 2 1/2 in
Width 2 1/16 in
Length (Straight Wireway) 2 1/2 in

Details

Item Solenoid
Solenoid Type Laminated
Stroke Range 1/8 in to 1 in
Pull Force Range 88.0 to 168.0 oz
Amps @ Max. Stroke 3.2 A
Terminals Solder Lug Coil
Coil Volts 240V AC
Duty Cycle Continuous
Pull @ 5/8 In. Stroke 5 oz
Pull @ 1 In. Stroke 1 oz
Pull @ 1/4 In. Stroke 35 oz
Pull @ 1/2 In. Stroke 13 oz
Pull @ 3/8 In. Stroke 20 oz
Seated Watts 18W
Mounting Holes 2 x 1-5/8 in
Seated Amps 0.24 A
Pull @ 3/4 In. Stroke 3 oz
Gravity Value 5.92 oz
Coil Resistance 60.0 ohm
Pull @ 1/8 In. Stroke 65 oz

Description

Solenoid, Laminated, Stroke Range 1/8 in to 1 in, Pull Force Range 88.0 to 168.0 oz, Width 2 1/16 in, Depth 2 1/16 in, Length 2 1/2 in, Coil Volts 240V AC, Seated Amps 0.24 A, Seated Watts 18W, Coil Resistance 60.0 ohm, Terminals Solder Lug Coil, Amps @ Max. Stroke 3.2 A, Duty Cycle Continuous, Mounting Holes 2 x 1-5/8 in, 5.92 oz Gravity Value
