Dranetz Power Qlty Anlz Kit, 6000A, HDPQ Visa HDPQ-P-VAFLEX6KPKG - main

Power Qlty Anlz Kit, 6000A, HDPQ Visa

  • Mfr # HDPQ-P-VAFLEX6KPKG

  • Zoro # G8579444

product price:  $7,669.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes

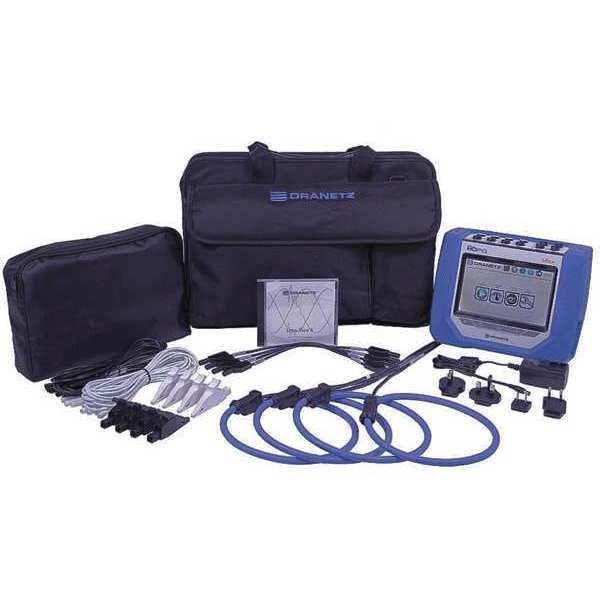

(1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Pro, Dranetz HDPQ Visa, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
6 to 6,000 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDPQ-P-VAFLEX6KPKG
Zoro #
G8579444
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Pro, Dranetz HDPQ Visa, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
6 to 6,000 A
Display
Color LCD Touch Screen
Max. DC Voltage
1,000V
Max. AC Amps
6,000 A
Voltage Channels
4
Calibration Certificate
NIST
Min. Transient Duration
32 mS
Storage
4 GB
Peak Capture
Yes
Max. AC Voltage
1,000
Current Channels
4
Crest Factor
I=3, V=2
Display Resolution
800 x 480
Calibration Frequency
45 to 65 Hz
Power Factor
0 to 1
Safety Rating
CAT III 1000V, CAT IV 600V
Voltage Accuracy
+/-0.1%
Max. VA
100 TVA
Current Accuracy
+/-0.1%
Harmonic Capture Range
63rd
Data Logging
Yes
AC Response
TRMS
Communication Protocol
Ethernet, Optional Bluetooth, USB, VNC Remote Control
IP Rating
IP65
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Data Output Type
Ethernet, Bluetooth, USB
Power Source
AC Adapter, Battery
Calibration Certificate Included
NIST Not Traceable
Maximum AC Current Measured
6,000 A

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Pro, Dranetz HDPQ Visa, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 6,000 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1
