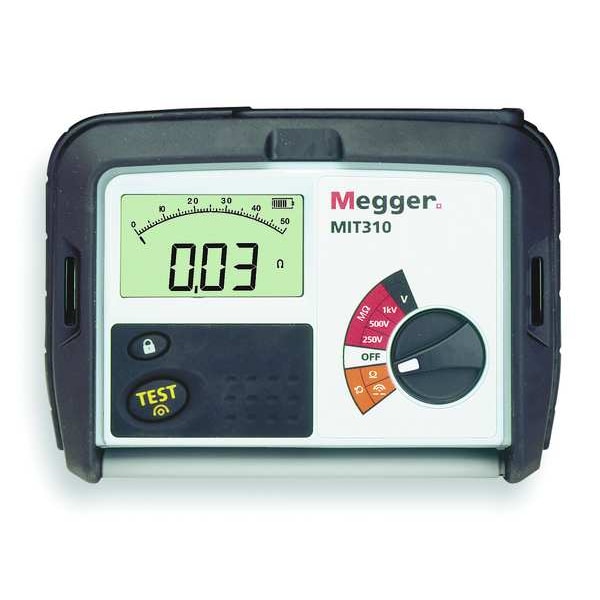

Megger Battery Operated Megohmmeter, 1000VDC MIT310 - main

Battery Operated Megohmmeter, 1000VDC

  • Mfr # MIT310

  • Zoro # G2035153

product price:  $1,038.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Crocodile Clips, Test Lead Set
Insulation Resistance Range
10 kiloohm to 999 megaohm
Accuracy
+/-3% +/-2 Digits
Auto Ranging
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MIT310
Zoro #
G2035153
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
3 yr
Tool Length
8 in
Tool Height
3.2 in
Tool Width
5.7 in
Battery Size
AA
Manufacturer Warranty Length
3 yr

Details

Item
Megohmmeter
Power Source
Battery
Includes
Crocodile Clips, Test Lead Set
Insulation Resistance Range
10 kiloohm to 999 megaohm
Accuracy
+/-3% +/-2 Digits
Auto Ranging
Yes
Live Circuit Detection
0 to 600V AC/V DC
Auto Power Off
Yes
Display
Digital LCD
Safety Rating
CAT III 600V, CAT IV 300V
Output Test Voltage
250/500/1000V DC
Features
Intelligent Safety System for Protection., Live Circuit Warning, Self Contained Protective Cover, Tough Rubber Armoured Case
Resistance Range
0 to 99.9 ohm
Leakage Current Range
205 mA +10 mA to 5 mA
Calibration Certificate
Included
Includes Software
Yes
Includes Batteries
Yes
Maximum Insulation Resistance
999 megaohm
Waterproof
Yes
Testing Functions
Continuity, Insulation Resistance
Insulation Limit Alarm
Yes
Minimum Operating Temperature
14 Degrees F
Timed Ramp Voltage Test
No
Dustproof
Yes
Test Voltage
1,000V DC
Alert Type
Digital Display, Audible
Live Circuit Voltage
Greater Than25V AC/DC
USB Data Download Included
No
Minimum Insulation Resistance
10 ohm
PI/DAR Testing
No
Number of Batteries Required
8
Display Type
Digital
Parameters Measured
Continuity, Resistance
Maximum Operating Temperature
140 Degrees F
Display Screen Type
LCD
Standards
BS 7671, EN 61557, ES 59009, IEC 364, NEN3140, NFC15-100, VDE 0413 parts 1 and 4, HD 384
CAT Safety Rating
CAT III 600V
Maximum AC Voltage Measured
600 V
IP Rating
IP54
Insulation Resistance Resolution
0.01 to 999 megaohm
Test Current
1 mA
Resistance Accuracy
+/-5% +/-2 Digits up to 100 kiloohm
Pass/Fail Selection Limits
Yes
Capacitance Auto Discharge
Yes
Operating Voltage
600V AC/DC
Greater Than 30V Warning
No
Backlit Digital Display
Yes
Bluetooth Compatible
No
Battery Chemistry
Alkaline
Remote Test Probe Included
No
Maximum Operating Temperature
140 Degrees F
Instrument Style
Handheld
Minimum DC Voltage Measured
25 V
Installation Tester Socket Region
EU, US
Minimum AC Voltage Measured
0 V
Maximum DC Voltage Measured
600 V
Live Circuit Voltage Measurement - Maximum
600 V AC/DC
Live Circuit Voltage Measurement - Minimum
5 V
Calibration Certificate Included
Traceable without Data
Data Output Type
USB
Number of Records Stored
1,000

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate Included, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning No, Includes Crocodile Clips, Test Lead Set, Insulation Limit Alarm Yes, Maximum Insulation Resistance 999 megaohm, Minimum Insulation Resistance 10 ohm, PI/DAR Testing No, Parameters Measured Continuity, Insulation Resistance, Pass/Fail Selection Limits Yes
