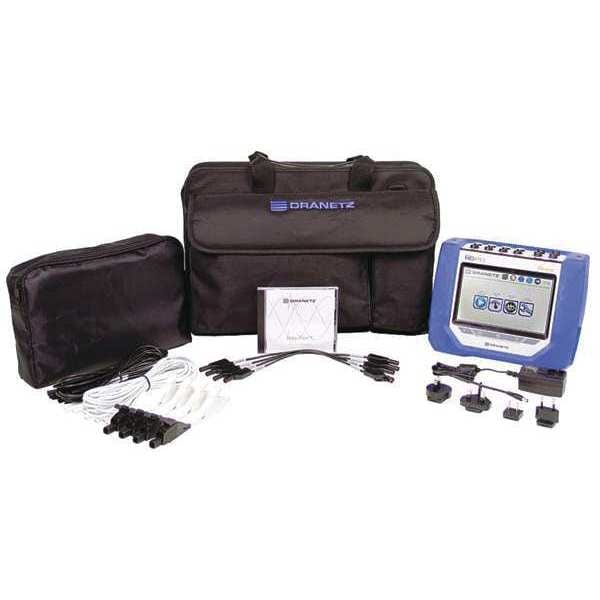

Dranetz Power Quality Analyzer Kit, 32 mS HDPQ-P-GAPKG - main

Power Quality Analyzer Kit, 32 mS

  • Mfr # HDPQ-P-GAPKG

  • Zoro # G8768925

product price:  $8,519.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes
AC Power Supply, Dran-View Enterprise, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Display
Color LCD Touch Screen
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDPQ-P-GAPKG
Zoro #
G8768925
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
AC Power Supply, Dran-View Enterprise, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Display
Color LCD Touch Screen
AC Response
TRMS
Safety Rating
CAT III 1000V, CAT IV 600V
Storage
4 GB
Peak Capture
Yes
Data Logging
Yes
Harmonic Capture Range
63rd
Current Channels
4
Calibration Certificate
NIST
Voltage Accuracy
+/-0.5%
Power Factor
0 to 1
Max. VA
100 TVA
Current Accuracy
+/-0.1%
Voltage Channels
4
Crest Factor
I=3, V=2
Min. Transient Duration
32 mS
Max. AC Voltage
1,000
Max. DC Voltage
1,000V
Display Resolution
800 x 480
Communication Protocol
Ethernet 802.11 b/g/n Wireless, Optional Bluetooth via USB Adapter, USB, VNC Remote Control
IP Rating
IP65
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
32 Degrees F
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Power Source
AC Adapter, Battery
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Calibration Certificate Included
NIST Not Traceable
Data Output Type
Ethernet, Bluetooth, USB

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes AC Power Supply, Dran-View Enterprise, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1, Testing Functions Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage, Voltage Channels 4, Power Source AC Adapter, Battery
