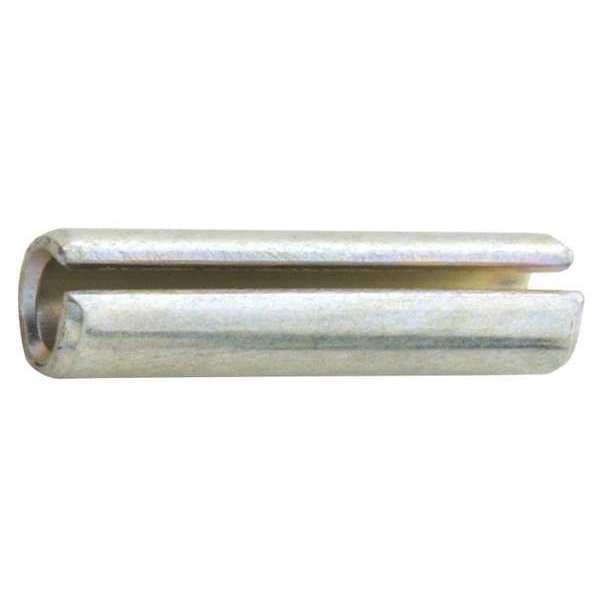

Spring Pin, Slot, 1/8x1/4 L, Pk250
Mfr # SLTP1250250BT
Zoro # G2127106
product price: $15.79
/pk 250, $0.06/eaKey Features
Pin Item
Spring Pin
System of Measurement
Inch
Spring Pin Type
Slotted
Basic Material
Steel
Material Grade
1070 and 1080
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SLTP1250250BT
Zoro #
G2127106
UPC #
-
Country of Origin
United States
Dimensions
Outside Dia.
1/8 in
Fastener Length
1/4 in
Overall Length
1/4"
Chamfer Length (Min.)
0.008 in
Actual Dia. (Min.-Max)
0.131-0.135 in
Chamfer Length (Max.)
0.044 in
Length Tolerance
+/-0.015 in
Fits Hole Dia. (Min.-Max.)
0.125-0.129 in
Wall Thickness
0.028 in
Nominal Diameter
1/8 in
Chamfer Diameter
0.122 in
Outside Diameter Tolerance
+/-0.002 in
Fits Maximum Hole Diameter
1/8 in
Minimum Chamfer Length
0.008 in
Maximum Chamfer Length
0.044 in
Shank Length Tolerance
+/-0.015 in
Shank Length
1/4 in
Pin Diameter
9/64 in
Usable Length
1/4 in
Fits Minimum Hole Diameter
1/8 in
Description
Slotted Spring Pin, 0.133 In. dia,0.25 In. L,PK250, System of Measurement Inch, Pin Diameter 9/64 in, Pin Type Slotted, Material Steel, Material Grade/Class Grade 1070/Grade 1080, Finish Zinc Plated, Usable Length 1/4 in, End Type Chamfered, Chamfer Diameter 0.122 in, Wall Thickness 0.028 in, Fits Minimum Hole Diameter 1/8 in, Fits Maximum Hole Diameter 1/8 in, Shank Length 1/4 in, Maximum Chamfer Length 0.044 in, Minimum Chamfer Length 0.008 in, Nominal Diameter 1/8 in
