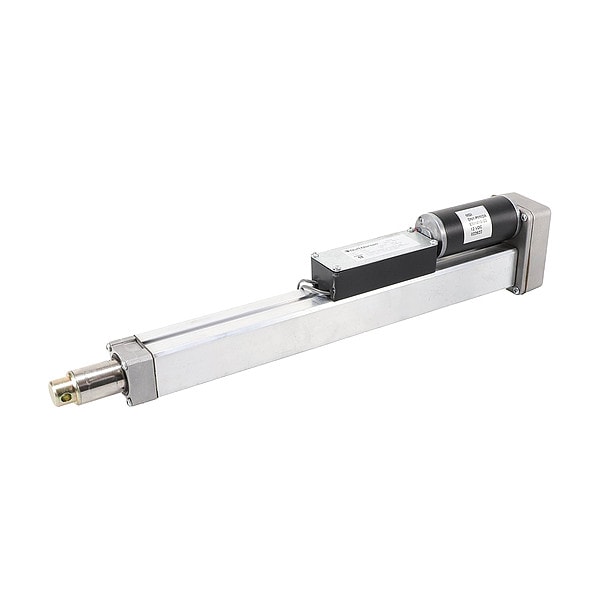

Linear Actuator, 100 lbf, 12V DC
Mfr # TMD01-1906-12
Zoro # G209215264
product price: $976.99
/ea
Free Shipping & Returns
Key Features
Rated Load
100 lb
Stroke Length
12 in
Speed @ Rated Load
0.7 in/sec
Duty Cycle
25 %
Voltage
12V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TMD01-1906-12
Zoro #
G209215264
UPC #
-
Country of Origin
China
Dimensions
Stroke Length
12 in
Retracted Length
16.75 in
Overall Height
3.15 in
Overall Width
2.15 in
Description
Linear Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 100 lbf, Stroke Length 12 in, Speed at Full Load 0.7 in/sec, Duty Cycle 25 Percent, Full Load Current 7 A, Retracted Length 16.75 in, Drive System Type Belt, Enclosure IP Rating IP50, Housing Material Aluminum, Limit Switch Setting Adjustable, Operating Temperature - Maximum 120 Degrees F, Operating Temperature - Minimum 25 Degrees F, Mounting Type Double Clevis
