  11. Linear Actuator, 112 lbf, 12V DC

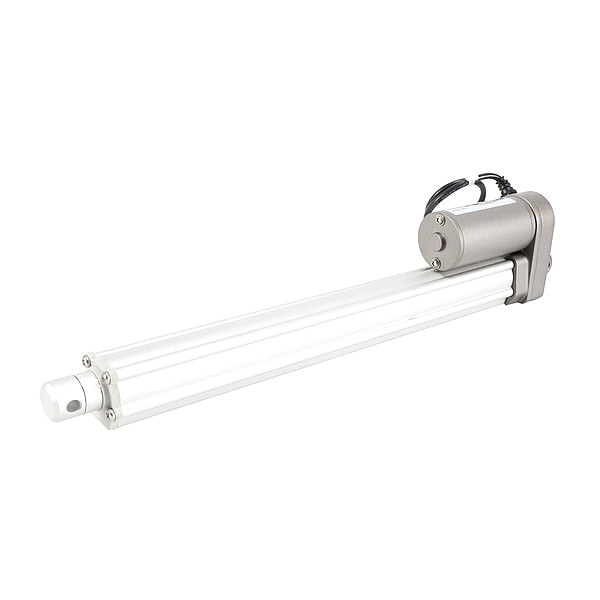

Duff-Norton Linear Actuator, 112 lbf, 12V DC LT100-1-250 - main

Linear Actuator, 112 lbf, 12V DC

  • Mfr # LT100-1-250

  • Zoro # G409215255

product price: $522.99
/ea
Free Shipping & Returns

Key Features

Rated Load
112 lb
Stroke Length
9.8 in
Speed @ Rated Load
0.5 in/sec
Duty Cycle
20 %
Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LT100-1-250
Zoro #
G409215255
UPC #
-
Country of Origin
China

Dimensions

Stroke Length
9.8 in
Retracted Length
14 in
Overall Width
1.6 in
Overall Height
3 in

Details

Item
Linear Actuator
Rated Load
112 lb
Speed @ Rated Load
0.5 in/sec
Duty Cycle
20 %
Voltage
12V DC
Full Load Amps
3.5 A
Screw Type
Acme
Nut Material
Plastic
Housing Material
Zinc Die Cast
Max. Ambient Temp.
65 Degrees C/149 Degrees F
Finish
Polished
Drive System Type
Gear
Motor Type
DC
Limit Switch Type
Factory Preset, Internal
Gear Material
Metal
Standards
CE Listed
Enclosure Type
IP66
Enclosure IP Rating
IP66
Load Capacity
112 lbf
Housing Finish
Polished
Full Load Current
3.5 A
Includes Potentiometer
Potentiometer Included
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Series
LT
Speed at Full Load
0.5 in/sec
Limit Switch Setting
Fixed
System of Measurement
Inch, Metric
Speed at No Load
1.72 in/sec

Description

Linear Actuator, Motor Type DC, Voltage 12V DC, Nut Material Plastic, Load Capacity 112 lbf, Stroke Length 9.8 in, Speed at Full Load 0.5 in/sec, Duty Cycle 20 Percent, Full Load Current 3.5 A, Retracted Length 14 in, Gear Material Metal, Drive System Type Gear, Enclosure IP Rating IP66, Includes Potentiometer Potentiometer Included, Housing Finish Polished, Housing Material Zinc Die Cast, Limit Switch Setting Fixed, Operating Temperature - Maximum 150 Degrees F
