  11. Linear Actuator, 1500 lbf, 115V AC

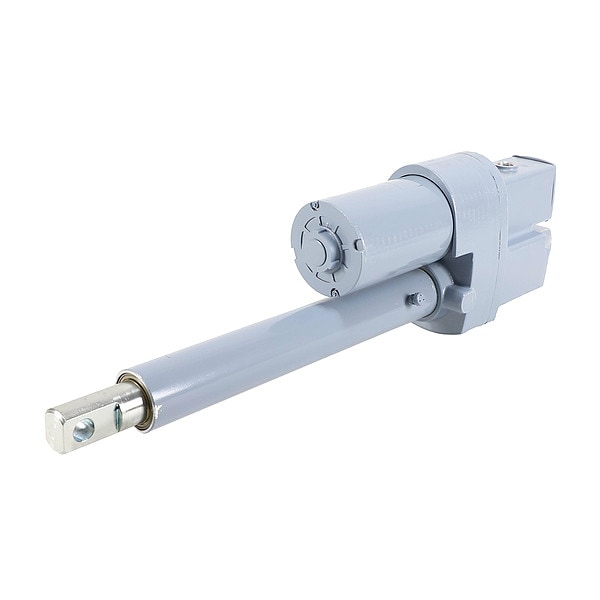

Duff-Norton Linear Actuator, 1500 lbf, 115V AC SPA6415-12 - main

Linear Actuator, 1500 lbf, 115V AC

  • Mfr # SPA6415-12

  • Zoro # G009215372

product price: $4,098.99
/ea
Free Shipping & Returns

Key Features

Rated Load
1,500 lb
Stroke Length
12 in
Speed @ Rated Load
0.83 in/sec
Duty Cycle
17 %
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPA6415-12
Zoro #
G009215372
UPC #
-
Country of Origin
China

Dimensions

Stroke Length
12 in
Retracted Length
26.1 in
Overall Height
7.938 in
Overall Width
4.6 in

Details

Item
Linear Actuator
Rated Load
1,500 lb
Speed @ Rated Load
0.83 in/sec
Duty Cycle
17 %
Voltage
115V AC
Full Load Amps
6.5 A
Housing Material
Aluminum
Nut Material
Bronze
Drive System Type
Acme Screw
Screw Type
Acme
Includes
Built-In Capacitor
Finish
Zinc Chromate Plated
Thermal Protection
Automatic
Max. Ambient Temp.
48.8 Degrees C/120 Degrees F
Limit Switch Type
Internal Adjustable
Feedback Signal
Potentiometer
Capacitor Included
Yes
Hz
60 Hz
Capacitor Required
Yes
Housing Finish
Zinc Chromate Plated
Operating Temperature - Minimum
15 Degrees F
System of Measurement
Inch, Metric
Full Load Current
6.5 A
Includes Thermal Protection
Thermal Protection Included
Speed at Full Load
0.9 in/sec
Speed at No Load
1.72 in/sec
Includes Capacitor
Capacitor Included
Limit Switch Setting
Adjustable
Load Capacity
1,500 lbf
Frequency
60 Hz
Enclosure IP Rating
IP52
Operating Temperature - Maximum
120 Degrees F
Series
SPA

Description

Linear Actuator, Voltage 115V AC, Nut Material Bronze, Load Capacity 1,500 lbf, Stroke Length 12 in, Speed at Full Load 0.9 in/sec, Duty Cycle 17 Percent, Full Load Current 6.5 A, Retracted Length 26.1 in, Includes Capacitor Capacitor Included, Drive System Type Acme Screw, Enclosure IP Rating IP52, Housing Finish Zinc Chromate Plated, Frequency 60 Hz, Housing Material Aluminum, Limit Switch Setting Adjustable, Operating Temperature - Maximum 120 Degrees F
