Shop DUFF-NORTON

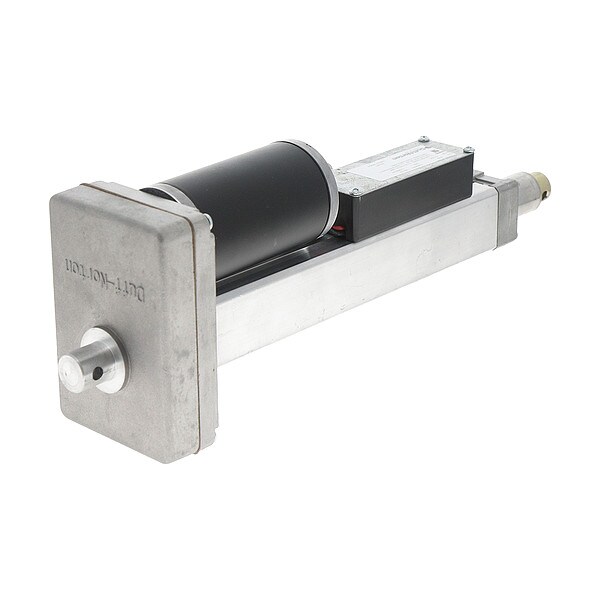

Linear Actuator, 250 lbf, 12V DC

  • Mfr # TMD02-1906-8

  • Zoro # G009215310

product price:
$
1,510.99
/ea
Free Shipping & Returns

Key Features

Rated Load
250 lb
Stroke Length
8 in
Speed @ Rated Load
0.4 in/sec
Duty Cycle
25 %
Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TMD02-1906-8
Zoro #
G009215310
UPC #
-
Country of Origin
China

Dimensions

Stroke Length
8 in
Retracted Length
13 in
Overall Height
4.61 in
Overall Width
3.2 in

Details

Item
Linear Actuator
Rated Load
250 lb
Speed @ Rated Load
0.4 in/sec
Duty Cycle
25 %
Voltage
12V DC
Full Load Amps
7 A
Screw Type
Acme
Housing Material
Aluminum
Nut Material
Plastic
Max. Ambient Temp.
50 Degrees C/120 Degrees F
Limit Switch Type
Adjustable
Motor Type
Permanent Magnet
Thermal Protection
No
Drive System Type
Belt
Feedback Signal
Pulse Generator
Load Capacity
250 lbf
Operating Temperature - Maximum
120 Degrees F
Speed at Full Load
0.4 in/sec
System of Measurement
Inch, Metric
Enclosure IP Rating
IP50
Operating Temperature - Minimum
25 Degrees F
Includes Thermal Protection
Thermal Protection Not Included
Full Load Current
7 A
Series
TMD02
Limit Switch Setting
Adjustable
Dynamic Load Capacity
250 lbf

Description

Linear Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 250 lbf, Stroke Length 8 in, Speed at Full Load 0.4 in/sec, Duty Cycle 25 Percent, Full Load Current 7 A, Retracted Length 13 in, Drive System Type Belt, Enclosure IP Rating IP50, Housing Material Aluminum, Limit Switch Setting Adjustable, Operating Temperature - Maximum 120 Degrees F, Operating Temperature - Minimum 25 Degrees F, Mounting Type Double Clevis
