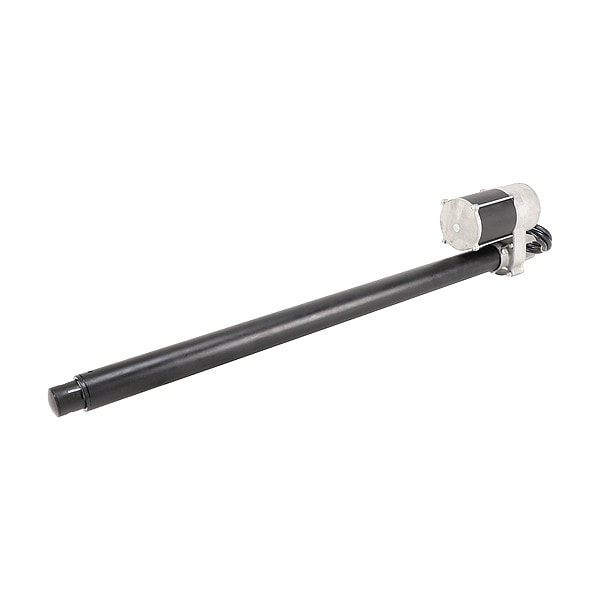

Linear Actuator, 675 lbf, 115V AC
Mfr # LS35-1B4TN-24
Zoro # G609215406
product price: $1,048.99
/ea
Free Shipping & Returns
Key Features
Rated Load
675 lb
Stroke Length
24 in
Speed @ Rated Load
0.26 in/sec
Duty Cycle
17 %
Voltage
115V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LS35-1B4TN-24
Zoro #
G609215406
UPC #
-
Country of Origin
China
Dimensions
Stroke Length
24 in
Retracted Length
31.4 in
Overall Height
5.99 in
Overall Width
3.35 in
Description
Linear Actuator, Motor Type Onboard Capacitor, Voltage 115V AC, Nut Material Plastic, Load Capacity 675 lbf, Stroke Length 24 in, Speed at Full Load 0.26 in/sec, Duty Cycle 17 Percent, Full Load Current 1.6 A, Retracted Length 31.4 in, Includes Capacitor Capacitor Included, Drive System Type Acme Screw, Housing Material Die Cast Aluminum, Limit Switch Setting Adjustable, Standards CE Listed, UL Listed, Includes Thermal Protection Thermal Protection Included, Overall Height 5.99 in
