  9. Vacuum Pump, 1 HP, 17.7 cfm, 115/230V

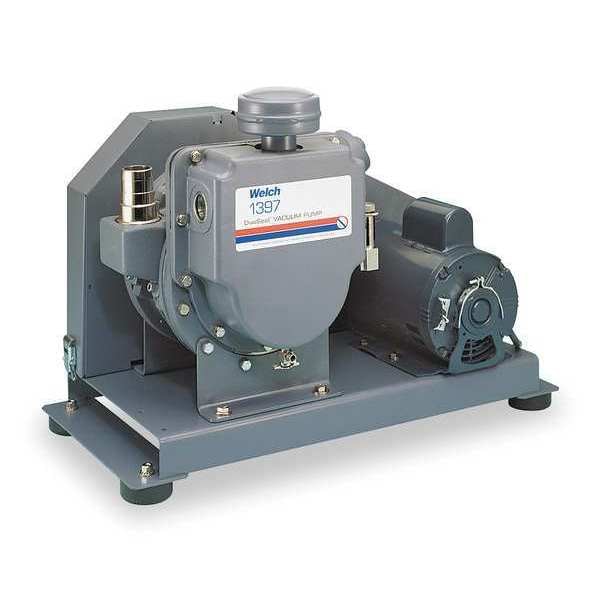

Duoseal Vacuum Pump, 1 HP, 17.7 cfm, 115/230V 1397B-01 - main

Vacuum Pump, 1 HP, 17.7 cfm, 115/230V

  • Mfr # 1397B-01

  • Zoro # G0784795

product price: $8,142.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
1 hp
Voltage
115/230V AC
Phase
1
Weight
205 lb
Amps AC
11.0/5.5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1397B-01
Zoro #
G0784795
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
26 in
Overall Height
18.75 in
Outlet Size
1 5/8 in NW
Overall Width
13.75 in
Tube Inside Dia.
1 5/8 in
Inlet Size
1 5/8 in NPT

Details

Item
Vacuum Pump
HP
1 hp
Voltage
115/230V AC
Phase
1
Weight
205 lb
Amps AC
11.0/5.5
Displacement
17.7 cfm
NPT Inlet
1 3/4 in
Ballast
Gas, Inhibits Condensation Inside Pump
Application
Chamber Evacuation, Degassing, Freeze Drying, Light Bulb, Neon Sign Manufacturing, Picture Tube Evacuation, Potting, Rice Porosity Test, Vacuum Drying
Includes
Oil
Ultimate Pressure Torr
1 x 10-4
Oil Capacity
40 oz
Finish
Paint
RPM
400 RPM
Filter
Intake, Screens Reduce Possibility of Foreign Material Entering Pump
Hz
60
Valve Type
Gas Ballast
Outlet Type
NW
Frequency
50 Hz
Maximum Flow Rate
17.7 cfm
Runs Dry
No
Fluid Compatibility
Oil
Maximum Discharge Pressure
0 mbar
Maximum Viscosity
339 SUS
Seal Material
PTFE
Output Power
1.25 hp
Thermal Protection
Automatic Reset
Current Rating
11.0/5.5 A
Maximum Speed
400 RPM
Filter Type
Screens
Maximum Operating Pressure
0 psi
Maximum Vacuum
0.0001 torr
Inlet Type
NPT
For Chemical Type
Highly-Refined Petroleum

Description

Vacuum Pump, Output Power 1.25 hp, Phase Single, Voltage 115/230V AC, Maximum Flow Rate 17.7 cfm, Maximum Vacuum 0.0001 torr, Inlet Size 1 5/8 in, Inlet Type NPT, Outlet Size 1 5/8 in, Outlet Type NW, Application Chamber Evacuation, Degassing, Freeze Drying, Light Bulb, Neon Sign Manufacturing, Picture Tube Evacuation, Potting, Rice Porosity Test, Vacuum Drying, Maximum Discharge Pressure 0 mbar, Maximum Operating Pressure 0 psi
