  9. Vacuum Pump, 1/3 HP, 0.9 cfm, 115V

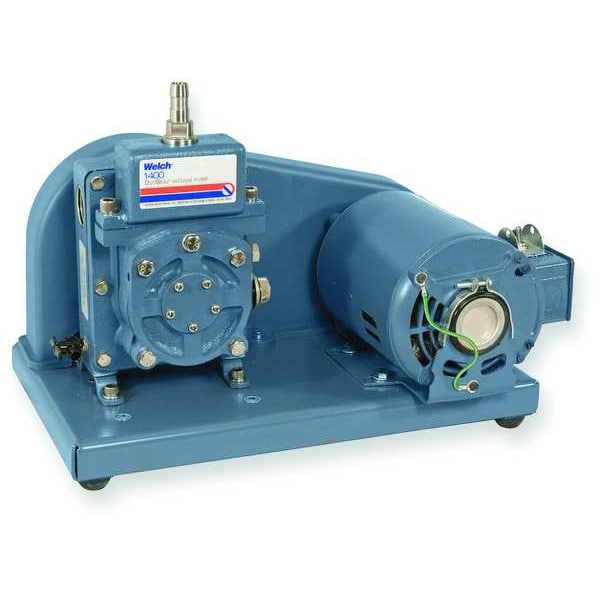

Duoseal Vacuum Pump, 1/3 HP, 0.9 cfm, 115V 1400B-01 - main

Vacuum Pump, 1/3 HP, 0.9 cfm, 115V

  • Mfr # 1400B-01

  • Zoro # G1833081

product price: $2,777.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Voltage
115V AC
Phase
1
Weight
58 lb
Amps AC
5.6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1400B-01
Zoro #
G1833081
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
17.75 in
Tube Inside Dia.
7/16 in
Overall Width
9 in
Overall Height
12.62 in
Outlet Size
7/16 in NW
Inlet Size
7/16 in NPT

Details

Item
Vacuum Pump
HP
1/3 hp
Voltage
115V AC
Phase
1
Weight
58 lb
Amps AC
5.6
Displacement
0.9 cfm
NPT Inlet
3/4 in
Filter
Intake, Screens Reduce Possibility of Foreign Material Entering Pump
Includes
Oil
Oil Capacity
19.84 oz
Hz
60
Ballast
Gas, Inhibits Condensation Inside Pump
Finish
Paint
RPM
580 RPM
Application
Chamber Evacuation, Degassing, Freeze Drying, Light Bulb, Neon Sign Manufacturing, Picture Tube Evacuation, Potting, Rice Porosity Test, Vacuum Drying
Ultimate Pressure Torr
1 x 10-4
Valve Type
Gas Ballast
Seal Material
PTFE
Maximum Discharge Pressure
0 mbar
Maximum Speed
580 RPM
Maximum Viscosity
339 SUS
Maximum Flow Rate
0.9 cfm
Inlet Type
NPT
For Chemical Type
Highly-Refined Petroleum
Outlet Type
NW
Thermal Protection
Automatic Reset
Filter Type
Screens
Fluid Compatibility
Oil
Lead-Free
No
Current Rating
5.6 A
Maximum Operating Pressure
0 psi
Output Power
0.33 hp
Maximum Vacuum
0.0001 torr
Runs Dry
No
Frequency
60 Hz

Description

Vacuum Pump, Output Power 0.33 hp, Phase Single, Voltage 115V AC, Maximum Flow Rate 0.9 cfm, Maximum Vacuum 0.0001 torr, Inlet Size 7/16 in, Inlet Type NPT, Outlet Size 7/16 in, Outlet Type NW, Application Chamber Evacuation, Degassing, Freeze Drying, Light Bulb, Neon Sign Manufacturing, Picture Tube Evacuation, Potting, Rice Porosity Test, Vacuum Drying, Maximum Discharge Pressure 0 mbar, Maximum Operating Pressure 0 psi
