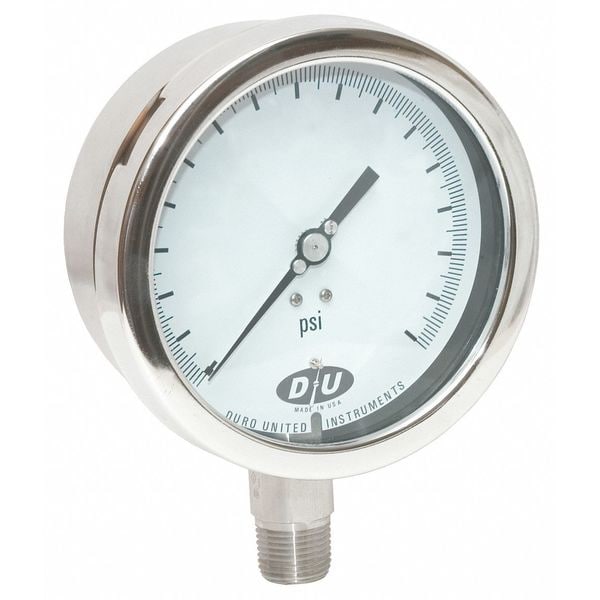

Duro Industrial Pressure Gauge, 0 to 400 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location 4207-0933-CERT - main

Industrial Pressure Gauge, 0 to 400 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # 4207-0933-CERT

  • Zoro # G8536473

product price:  $173.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4207-0933-CERT
Zoro #
G8536473
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 1/2 in
Case Diameter
5.04 in
Case Depth
2.32 in
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Chemical Industries, Oil and Gas Industry
Gauge Case Material
Stainless Steel
Series
20
Lens Material
Glass
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Graduations
50 psi
Gauge Application
Demanding Industries Such as Chemical, Petroleum and Other Services Where Accurate and Dependable Gauges are Required
Case Color
Metallic
Includes
Pulsation Restrictor
Calibration Certificate Included
Yes, NIST with Data
Smallest Graduation
5 psi
Gauge Primary Range Smallest Graduation
5
Case Material
Stainless Steel
Socket Material
Stainless Steel
Standards
ASME/ANSI
Wetted Materials
Stainless Steel
Connection Type
MNPT
Freeze Resistant Movement
No
Sensor Material
Stainless Steel
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Includes Calibration Certificate
NIST with Data
Dry Dampening Feature
None
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade 2A
Ambient Operating Temperature Range
-40 Degrees to 275 Degrees F
Pressure Range Type
Pressure
Dial Face Material
Aluminum
Case Construction
Corrosion Resistant
Dial Color
White
Gauge Case Liquid
None
Movement Type
Rotary
Includes Mounting Hardware
No
Primary Scale Minor Graduations
5
Sensor Type
Bourdon Tube
Bezel Mounting Type
Bayonet
Movement Material
Stainless steel
Scale Type
Single
Process Connection Gender
Male
Accuracy Scale
Full Scale
Vibration Resistance
None
Removable Bezel
Yes
Field Fillable
No
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Characteristics
Lightweight Balanced Construction with Micrometer Adjustment
Pointer Color
Black
Maximum Pressure
400
Operating Temperature Range
-40 Degrees to 275 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Finish
Polished Stainless Steel
NEMA Enclosure Rating
4
Process Media Temperature - Minimum
-65 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
400 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
240 Degrees F
Secondary Scale Units
None
IP Rating
IP65
Operating Temperature - Maximum
275 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
