Shop All Manual Winches
Dutton-Lainson

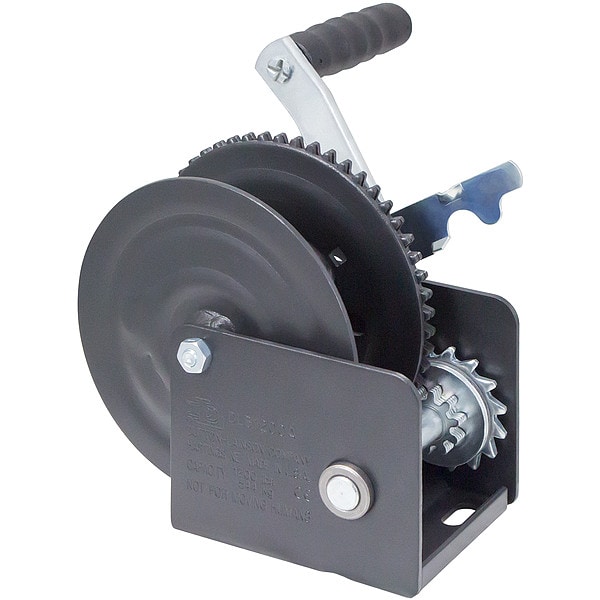

Hand Winch, Spur Gear, Brake, 1200 lb.

original price: $95.59
15% off
new price: $80.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Gear Type Spur
  • Overall Width 6 1/2 in
  • Drum Capacity for 1/4 In. Cable 50 ft
  • Frame Material Steel
  • Brake Included Yes
See all product information

Product Information

Dimensions

Overall Width 6 1/2 in
Manufacturers Warranty Length 5 yr
Overall Length 7 1/2 in
Overall Height 6 3/4 in
Handle Length 7 in
Drum Capacity per Line Dia. 205 ft per 1/8 in, 50 ft per 1/4 in, 69 ft per 7/32 in, 93 ft per 3/6 in
Strap Width 2"
Maximum Line Length 69 ft
Maximum Line Diameter 7/32 in
Mfr. Warranty Length 5 yr Limited

Details

Gear Type Spur
Drum Capacity for 1/4 In. Cable 50 ft
Frame Material Steel
Brake Included Yes
Drum Capacity for 3/16 In. Cable 93 ft
Drum Capacity for 7/32 In. Cable 69 ft
Drum Capacity for 1/8 In. Cable 205 ft
Drum Capacity for 2 In. Strap 35 ft
Application For Pulling
Frame Finish Powder Coated
Frame Color Bronze
Winch Type Pulling
Winch Gear Type Spur
Includes Free Wheel Lever, Handle with Molded Hand Grip
Winch Gear Ratio 5.4:1
Standards ASAE S361.3
1st Layer Load Capacity 1,200 lb
Gear Ratio 5.4:1
Item Hand Winch
Finish Metallic Copper Bronze Powdercoated Reel and Base, Zinc TUFFPLATE Components
Color Black
Clutch Type No Clutch
Compatible Line Steel Cable
Body Finish Powder Coated
Number of Gear Settings 1
Maximum Lifting Capacity 1,200 lb
Body Material Steel
Body Type Open
Includes Brake Brake Included
Operation Pulling
Control Type Manual Handle
Handle Attachment Type Permanent
Handle Mount Location Side
Fully Wound Load Capacity 1,200 lb

Description

Hand Winch, 1st Layer Load Capacity 1,200 lb, Clutch Type No Clutch, Fully Wound Load Capacity 1,200 lb, Gear Ratio 5.4:1, Gear Type Spur, Maximum Line Length 69 ft, Number of Gear Settings 1, Operation Pulling, Body Material Steel, Body Type Open, Color Black, Compatible Line Steel Cable, Drum Capacity per Line Diameter 205 ft per 1/8 in, 50 ft per 1/4 in, 69 ft per 7/32 in, 93 ft per 3/6 in, Drum Capacity per Strap Width Not Applicable, Handle Attachment Type Permanent
