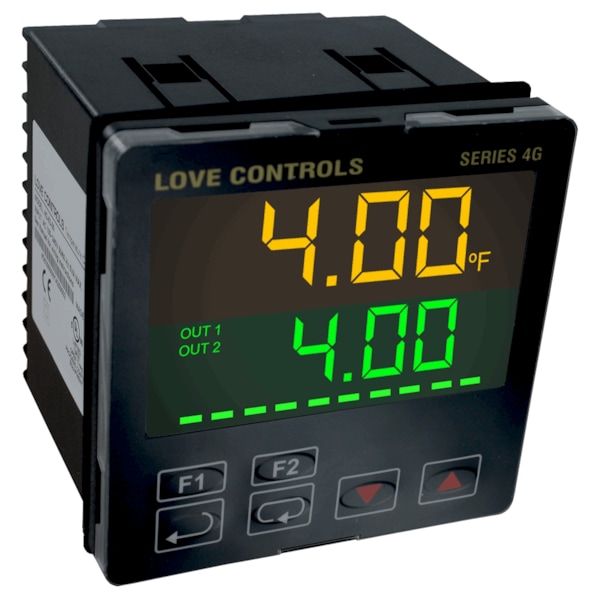

1/4 DIN temperature/controller, relay/relay, RS485, 2 event input
Mfr # 4G-33-11
Zoro # G607149093
product price: $230.99
/ea
Free Shipping & Returns
Key Features
Power Consumption
5 VA max.
Features
Display
Process value: 4 digit, 0.47" H (12mm), orange LCD; Set point value: 4 digit, 0.47" H (12mm), green LCD.
Accuracy
± 1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up.
Communication
RS-485 Modbus® ASCII/RTU communication protocol.
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4G-33-11
Zoro #
G607149093
UPC #
-
Country of Origin
China
Details
Power Consumption
5 VA max.
Features
Display
Process value: 4 digit, 0.47" H (12mm), orange LCD; Set point value: 4 digit, 0.47" H (12mm), green LCD.
Accuracy
± 1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up.
Communication
RS-485 Modbus® ASCII/RTU communication protocol.
Storage Temperature
-42 to 150°F (-20 to 65°C).
Alarm Relay Ratings
3 A @ 250 VAC resistive.
Operating Temperature
32 to 122°F (0 to 50°C).
Control Output Ratings
Relay: SPST, 5 A @ 250 VAC resistive; Voltage pulse: 12 V (max. 40 mA); Current: 4 to 20 mA; Linear voltage: 0 to 10 V.
Front Panel Rating
IP66.
Agency Approvals
CE, cULus.
Power Requirements
100 to 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Memory Backup
Nonvolatile memory.
Description
1/4 DIN temperature/controller, relay/relay, RS485, 2 event input
