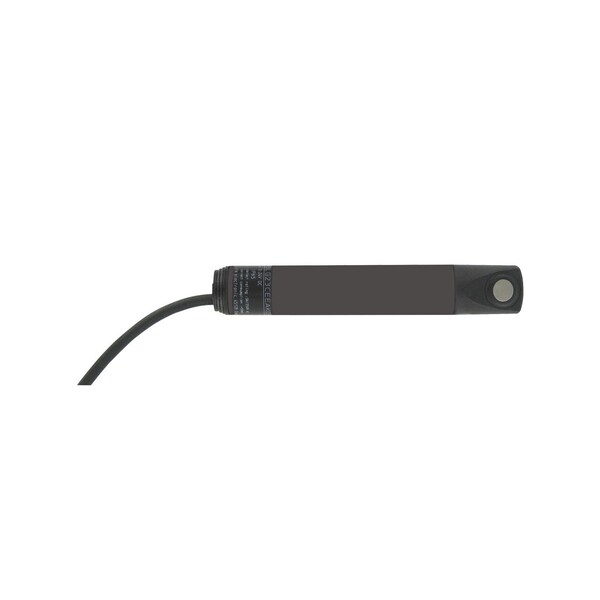

Air Flow Switch, 1,969 fpm, 3 A, PBT

  • Mfr # AVFS-2
  • Zoro # G307149027
product price:
$
430.99
/ea
Free Shipping & Returns

Key Features

Features
Integral red/green air flow status LED's; Flush sensor design limits issues due to dust or particulate in the air flow; IP65 construction
Response Time
3-60 seconds. Varies with flow and set point.
Pressure Limit
14.7 psig (1 bar).
Housing
PBT.
Agency Approvals
CE.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AVFS-2
Zoro #
G307149027
UPC #
-
Country of Origin
Romania

Details

Features
Integral red/green air flow status LED's; Flush sensor design limits issues due to dust or particulate in the air flow; IP65 construction
Response Time
3-60 seconds. Varies with flow and set point.
Pressure Limit
14.7 psig (1 bar).
Housing
PBT.
Agency Approvals
CE.
Temperature Limits
5 to 122°F (-10 to 50°C).
Humidity Limits
0-90% RH.
Electrical Rating
3 A @ 30 VDC/250 VAC.
Power Consumption
3 VA.
Wetted Materials
PBT body, titanium sensor.
Switch Type
N.O. SPST.
Display
1 Red LED/1 Green LED.
Repeatability
±5% FS.
Enclosure Rating
IP65.

Description

Air Flow Switch, Contact Form SPST, Input Voltage 30V DC/250V AC, Full Load Current 3 A, Maximum Air Velocity 1,969 fpm, Minimum Actuation Air Velocity - Horizontal 197 fpm, Maximum Duct Air Temperature 122 Degrees F, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 5 Degrees F, Housing Material PBT, NEMA Rating 4X, Application Air Handlers, Damper Feedback, Fan Monitoring, Filter Monitoring, Overall Width 7/8 in, Overall Height 5 1/2 in
