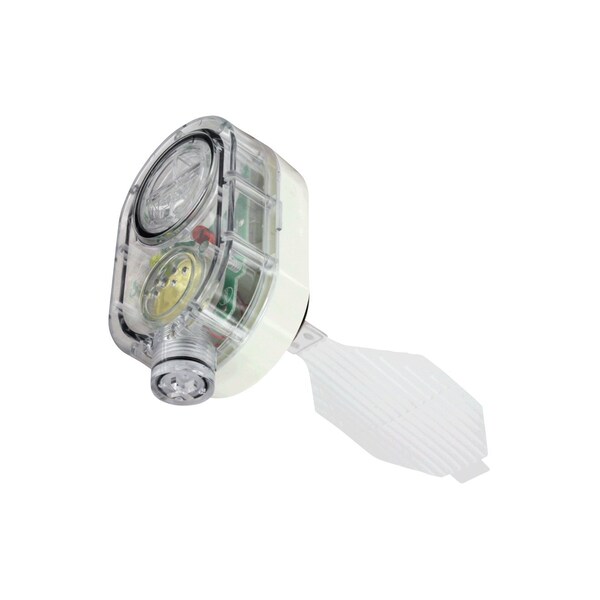

Air Flow Switch, Input 3V DC, ABS
- Mfr # DAFA-1
- Zoro # G207143385
product price:Â
$
68.19
/ea
Key Features
Wetted Materials
ABS, polycarbonate, rare earth magnet.
Features
Simple and quick installation; Field trimmable vane included to allow unit to be used in 3" and 4" pipes; Audible and visual alarms; Battery-operated with up to 5 year battery life and low battery warning
Battery Life
5 years steady state; 48 hours during alarm state.
Mounting Orientation
Vertical.
Power Requirements
3 V CR2450 lithium battery, included, user replaceable.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DAFA-1
- Zoro #
- G207143385
- UPC #
- -
- Country of Origin
- China
Details
- Item
- Pressure Switch
- Wetted Materials
- ABS, polycarbonate, rare earth magnet.
- Features
- Simple and quick installation; Field trimmable vane included to allow unit to be used in 3" and 4" pipes; Audible and visual alarms; Battery-operated with up to 5 year battery life and low battery warning
- Battery Life
- 5 years steady state; 48 hours during alarm state.
- Mounting Orientation
- Vertical.
- Power Requirements
- 3 V CR2450 lithium battery, included, user replaceable.
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Agency Approvals
- CE.
- Service
- Clean air.
Description
Air Flow Switch, Contact Form Not Applicable, Input Voltage 3V DC, Full Load Current Not Applicable, Maximum Air Velocity Not Applicable, Maximum Duct Air Temperature 122 Degrees F, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Housing Material ABS, Application Air Flow Monitoring in 3 in and 4 in Pipes, Radon Mitigation Systems, Mounting Orientation Vertical, Overall Width 2 1/8 in, Overall Height 3 1/2 in, Standards CE Listed, RoHS Compliant
Restrictions
Hazardous material
