Dwyer Instruments Air velocity kit, 0-1" w.c 477-000T-AV - main

Air velocity kit, 0-1" w.c

  • Mfr # 477-000T-AV

  • Zoro # G2380455

product price: $1,126.99
/ea
Free Shipping & Returns

Key Features

Air Velocity Accuracy
+/-0.5% Full Scale ftom 60 to 78 Degrees F, +/-1.5% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F
Includes

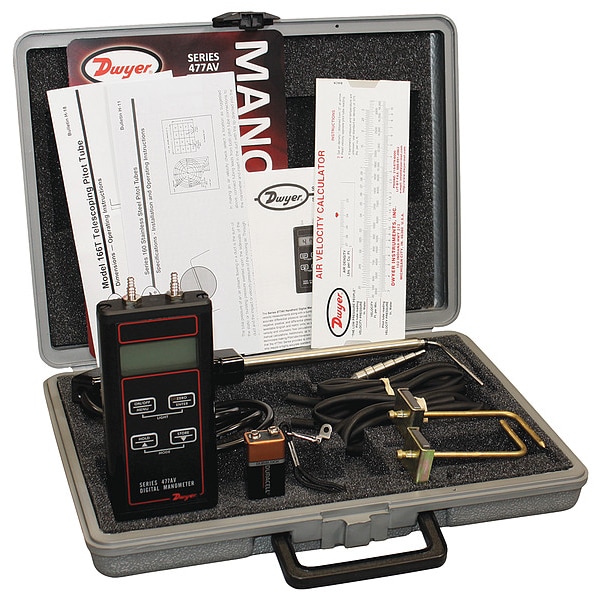

(2) 4 1/2 Ft Lengths 3/16 in ID Rubber Tubing, (2) No. A-303 Static Pressure Tips with Magnetic Mounting, Fitted Polyethylene Case, Model 166T Telescoping Pitot Tube, No. A-397 Step Drill, No. A-532 AV Slide Chart
Data Hold
Yes
Auto Power Off
Yes
Battery Type
9V Alkaline
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
477-000T-AV
Zoro #
G2380455
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in, 3/16 in
Housing Height
5.89 in
Overall Width
2.81 in
Housing Length
2.812 in
Overall Height
6.53 in
Overall Length
0.906 in
Battery Size
9V

Details

Item
Air Manometer Kit
Air Velocity Accuracy
+/-0.5% Full Scale ftom 60 to 78 Degrees F, +/-1.5% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F
Includes
(2) 4 1/2 Ft Lengths 3/16 in ID Rubber Tubing, (2) No. A-303 Static Pressure Tips with Magnetic Mounting, Fitted Polyethylene Case, Model 166T Telescoping Pitot Tube, No. A-397 Step Drill, No. A-532 AV Slide Chart
Data Hold
Yes
Auto Power Off
Yes
Battery Type
9V Alkaline
Pressure Range
0 in wc to 1 in wc
Alarm
Yes
NEMA Rating
0 in wc
Application
Air; Compatible Gases
Maximum Pressure
1 in wc
Maximum Air Velocity
4,004 fpm
Display Units
cfm, cm wc, cu m/hr, cu m/sec, fpm, fps, ft wc, hPa, in Hg, in wc, k/h, knot, kPa, m/h, m/s, mbar, mm Hg, mm wc, mph, oz/sq in, Pa, psi
Storage Temperature Range
-4 Degrees to 176 Degrees F
Minimum Pressure
0 in wc
Includes Batteries
Batteries Included
Minimum Operating Temperature
0 Degrees F
Maximum Operating Pressure
5 psi
Pressure Resolution
0.01 in wc
Operating Pressure Range
0 to 1 in wc
Series
477AV
Calibration Certificate Included
No
Low Battery Indicator
Yes
Sensing Element Type
Piezoelectric
Maximum Operating Temperature
140 Degrees F
Pressure Units
cm wc, ft wc, hPa, in Hg, in wc, kPa, mbar, mm Hg, mm wc, oz/sq in, Pa, psi
Standards
CE
Housing Material
Aluminum
Pressure Accuracy
+/-0.5% Full Scale ftom 60 to 78 Degrees F, +/-1.5% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F
Digital Display Features
4 Digit Backlit LCD
Weight
10.2 oz
Batteries Required
Yes
Process Connection Type
Hose Barb
Operating Temperature - Maximum
140 Degrees F
Air Velocity Measurement - Maximum
4,004 fpm
Includes Alarm
Alarm Included
Number of Digits
4
Operating Temperature - Minimum
0 Degrees F
Intrinsic Safety
Not Specified Intrinsically Safe
Pressure Measurement - Minimum
0 in wc
Pressure Measurement - Maximum
1 in wc
Includes Low Battery Indicator
Low Battery Indicator
Includes Data Hold
Data Hold
Digital Display Type
Backlit LCD

Description

Air Manometer Kit, Maximum Pressure 1 in wc, Minimum Pressure 0 in wc, Pressure Accuracy +/-0.5 Percent Full Scale ftom 60 to 78 Degrees F, +/-1.5 Percent Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F, Process Connection Size 1/8 in, 3/16 in, Process Connection Type Hose Barb, Includes Batteries Batteries Included, Digital Display Features 4 Digit Backlit LCD, Series 477AV, Maximum Air Velocity 4,004 fpm
