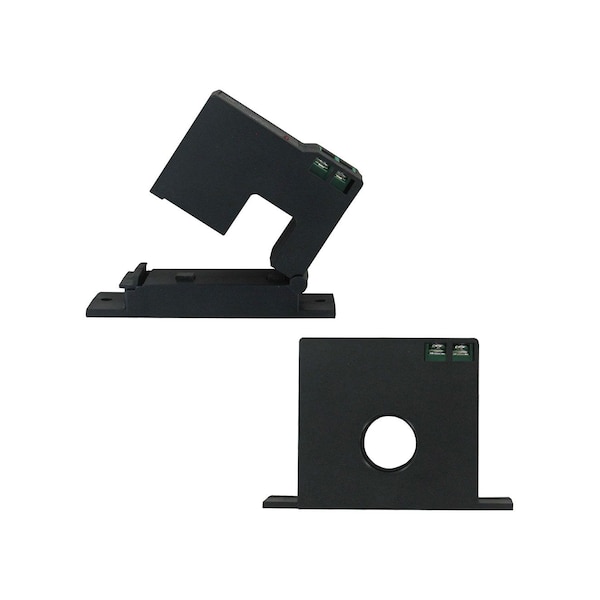

Current transformer, 100/150/200 A input, 4-20 mA output, solid core.
Mfr # CCT50-200
Zoro # G807143983
product price:Â
$
46.89
/ea
Key Features
Item - Transformer
Solid Core Current Transformer
Overall Depth
4.4 in
Features
Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range
Enclosure Rating
UL, 94 V-O flammability rated, ABS plastic housing.
Frequency
10 to 400 Hz.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CCT50-200
- Zoro #
- G807143983
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Depth
- 4.4 in
Details
- Item - Transformer
- Solid Core Current Transformer
- Features
- Integral mounting flange for quick installation; Solid core or split core configurations; Jumper selectable range
- Enclosure Rating
- UL, 94 V-O flammability rated, ABS plastic housing.
- Frequency
- 10 to 400 Hz.
- Power Requirements
- Self powered or 15 to 42 VDC loop powered (depending on model).
- Approvals
- CE, cUL, UL.
- Response Time
- 250 ms to 90%.
- Accuracy
- 1%.
- Temperature Limits
- -22 to 158ºF (-30 to 70ºC).
- Isolation Voltage
- 2000 V.
- Humidity Limits
- 0 to 95% (non-condensing).
- Amperage Range
- Field selectable; up to 200 A (depending on model).
- Output
- 0 to 5 V, 0 to 10 V, or 4 to 20 mA (depending on model).
Description
Current transformer, 100/150/200 A input, 4-20 mA output, solid core.
