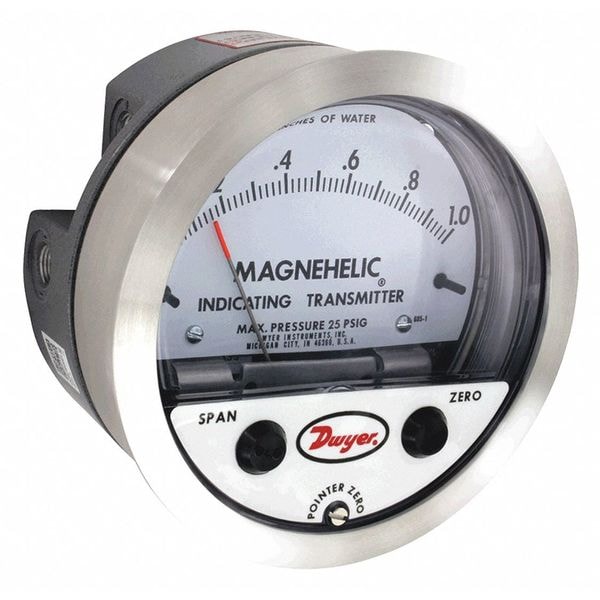

Dwyer Instruments Differential Pres Indicating Transmitter 605-20 - main

Differential Pres Indicating Transmitter

  • Mfr # 605-20

  • Zoro # G3268940

product price: $528.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5% (Electrical); +/-2% (Mechanical)
Output
4 to 20mA
Power Required
10 to 35V DC
Process Connection Type
NPT
Process Connection Size
1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
605-20
Zoro #
G3268940
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in
Diameter
5 in
Overall Width
5.25 in
Housing Length
4 in
Overall Length
2.5 in
Overall Diameter
5 in

Details

Item
Indicating Transmitter
Accuracy
+/-0.5% (Electrical); +/-2% (Mechanical)
Output
4 to 20mA
Power Required
10 to 35V DC
Process Connection Type
NPT
Connection Location
Back
Series
605
Standards
CE, RoHS Compliant
Display Units
in wc
Features
Easy to Read Gage
NEMA Rating
Not Rated
Display Type
Dial
Thermal Error
+/-0.025%/ Degrees F
Maximum Pressure
20 in wc
Pressure Units
in wc
Intrinsically Safe
No
Calibration Certificate Included
No
Maximum Loop Resistance
1250 Ohm
Process Connection Gender
Female
Number of Wires
2
Maximum Operating Temperature
120 Degrees F
Primary Scale Range
0 to 20 in wc
Primary Scale Units
in wc
Minimum Pressure
0 in wc
Minimum Operating Temperature
20 Degrees F
Shape
Round
NIST Traceable Certificate
No
IP Rating
Not Rated
For Use With Media Type
Air, Non-Combustible Compatible Gases
Explosion/Fire Proof
No
Electrical Connections
Screw Terminals
Weight
1 lb
Process Connection Location
Back
Input Voltage
10 to 35V DC
Process Media Temperature - Maximum
120 Degrees F
Intrinsic Safety
Not Specified Intrinsically Safe
Electrical Connection
Terminal Block
Process Media Temperature - Minimum
20 Degrees F
Output Power
4 to 20mA
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Loop Resistance - Maximum
1250 Ohm
Pressure Measurement - Minimum
0 in wc
Pressure Measurement - Maximum
20 in wc
NEMA Enclosure Rating
Not Rated

Description

Indicating Transmitter, Output 4 to 20mA, Maximum Pressure 20 in wc, Minimum Pressure 0 in wc, Accuracy +/-0.5 Percent (Electrical); +/-2 Percent (Mechanical), Number of Wires 2, Power Required 10 to 35V DC, Process Connection Size 1/8 in, Process Connection Type NPT, Process Connection Gender Female, IP Rating Not Rated, NEMA Rating Not Rated, Series 605, Electrical Connections Screw Terminals, NIST Traceable Certificate No, Display Type Dial, Connection Location Back, Diameter 5 in
