Shop DWYER INSTRUMENTS

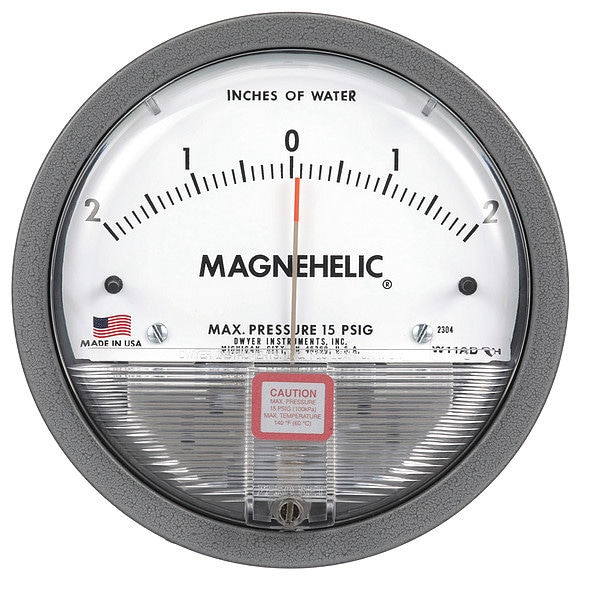

Differential pressure gage, range 2-0-2" w.c., minor divisions .10.

  • Mfr # 2304

  • Zoro # G3620767

product price:
$
107.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2.00%
Process Connection Type
NPT
Process Connection Size
1/8 in
Series
2000
Process Connection Gender
Female
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2304
Zoro #
G3620767
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in
Nominal Dial Size
4 in
Gauge Nominal Dial Size
4 1/2 in
Differential Gauge Connection Size
1/8 in
Case Diameter
4 3/4 in
Bolt Circle Diameter
4.125 in
Manufacturer Warranty Length
5 yr
Case Depth
1.687 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-2.00%
Process Connection Type
NPT
Series
2000
Process Connection Gender
Female
Application
Flow Measurement, Vacuum Applications, Clean Rooms, HVAC/R, Fan Pressure Indication, Filtration Monitoring
Process Connection Location
Back, Side
Housing Material
Die Cast Aluminum
Pressure Range
2 to 0 to 2 in wc
Sensor Type
Diaphragm
Rated Total Pressure
-20 in Hg to 15 psi
Standards
EU Directive 2011/65/EU (RoHS II)
Gauge Operating Temp. Range
20 Degrees to 140 Degrees F
Differential Pressure Range Value
-2 to 0 to 2
Includes
Two 1/8 in NPT Plugs
Gauge Accuracy
+/-2%
Gauge Connection Location
Back and Side
Case Color
Gray
Differential Gauge Connection Type
FNPT
Differential Pressure Range Units
in wc
Case Material
Aluminum
Gauge Case Material
Aluminum
Compatible Process Media
Cleanroom
Maximum Working Static Pressure
80 psig
Includes Calibration Certificate
No
Mounting Orientation
Upright Only
Case Shape
Round
Hazardous Location Rating
Not Rated
Over-Pressure Limit
1.72 bar
Non-Sparking
No
Bezel Mounting Type
Flush
Bezel Material
Die Cast Aluminum
Accuracy Details
+/-2% (-HA model +/-1) of FS ( +/-3% (-HA +/-1.5%) on -0, -100PA, -125PA, -10MM and +/-4% (-HA +/-2%) on -00, -60PA, -6MM ranges), throughout range at 70 Degrees F (21.1 Degrees C).
Mounting Hardware Included
Flange
Case Construction
Corrosion Resistant
Case Finish
Die Cast
Ambient Operating Temperature Range
20 Degrees to 140 Degrees F
Blowout Safety Back
Yes
Pointer Characteristics
Red Tipped Pointer of Heat Treated Aluminum Tubing is easy to see
Adjustable Set Points
No
Includes Vent Plug
Yes
Dial Face Material
Plastic
Pointer Material
Aluminum
Sensor Material
Silicone Rubber
Includes Mounting Hardware
Yes
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Panel-Mountable
Yes
Pressure Gauge Type
Differential Pressure Gauge
Dial Color
White
IP/NEMA Rating
IP67
Removable Bezel
No
Pressure Measurement - Minimum
-2 in wc
Number of Switches
0
Operating Temperature - Minimum
20 Degrees F
IP Rating
IP67
Operating Temperature - Maximum
140 Degrees F
Pressure Measurement - Maximum
2 in wc
Working Static Pressure - Maximum
80 psig

Description

Differential Pressure Gauge, Pressure Range 15.0-0-15.0 Inches WC, Pressure Range Minor Divisions 1.00, Rated Total Pressure -20 Inches Hg to 15 PSIG, Differential Pressure
