Dwyer Instruments

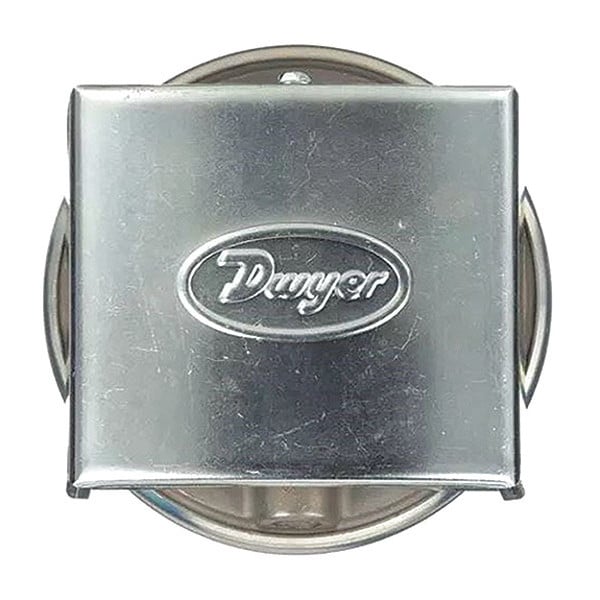

Differential Pressure Switch 007-022 In


product price: $123.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards CE Listed, CSA, FM, UL Listed
  • Minimum Operating Temperature -20 Degrees F
  • Mounting Orientation Vertical
  • Overall Height 3 7/8 in
  • Weight 1 lb
See all product information

Product Information

Dimensions

Overall Height 3 7/8 in
Overall Depth 1 7/8 in
Sample Line Connection Size 1/8 in
Overall Width 2 1/8 in
Mounting Hole Diameter 1/16 in

Details

Item Differential Pressure Switch
Standards CE Listed, CSA, FM, UL Listed
Minimum Operating Temperature -20 Degrees F
Mounting Orientation Vertical
Weight 1 lb
Number of Switches 1
Electrical Connection Type Screw Terminals
Mounting Hole Center to Center Distance 1 1/8 in
Sample Line Connector Type NPT
Housing Type Conduit Box
Pressure Type Differential
Electrical Rating 1/4 hp @ 250 V AC, 60 Hz, 10 A, 15 A @ 120 to 480 V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC
Pressure Setpoint Type Adjustable
Product Type Differential Pressure Switch
Contact Form SPDT
Maximum Pressure Rating 25 psig
Maximum Operating Temperature 180 Degrees F
Input Voltage 120 to 480V AC, 125V AC, 250V AC
Minimum Differential Pressure Setting 0.07 in wc
Maximum Differential Pressure Setting 0.22 in wc
Maximum Pressure Setting 0.22 in wc
Minimum Pressure Setting 0.07 in wc

Description

Differential Pressure Switch, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 hp @ 250 V AC, 60 Hz, 10 A, 15 A @ 120 to 480 V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC, Housing Type Conduit Box, Input Voltage 120 to 480V AC, 125V AC, 250V AC, Maximum Differential Pressure Setting 0.22 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 25 psig, Maximum Pressure Setting 0.22 in wc, Minimum Differential Pressure Setting 0.07 in wc
