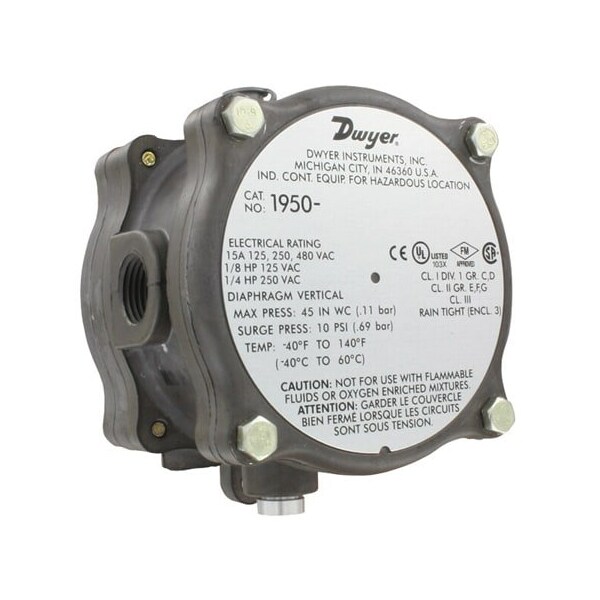

Differential Pressure Switch, 3 1/2" H
- Mfr # 1950P-2-2F
- Zoro # G3268557
product price:Â
$
444.99
/ea
Free Shipping & Returns
Key Features
Application
HVAC
Standards
CE Listed, CSA, FM, IP54, NEMA 3, NEMA 7, NEMA 9, UL Listed
Overall Width
1 1/2 in
Overall Height
3 1/2 in
Weight
3.25 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1950P-2-2F
- Zoro #
- G3268557
- UPC #
- -
- Country of Origin
- United States
- Item
- Differential Pressure Switch
- Application
- HVAC
- Standards
- CE Listed, CSA, FM, IP54, NEMA 3, NEMA 7, NEMA 9, UL Listed
- Weight
- 3.25 lb
- Minimum Differential Pressure Setting
- 0.5 psid
- Mounting Orientation
- Vertical
- Pressure Setpoint Type
- Adjustable
- Housing Type
- Standard Housing
- Electrical Connection Type
- Screw Terminals
- Product Type
- Differential Pressure Switch
- Maximum Differential Pressure Setting
- 2 psid
- Contact Form
- SPDT
- Pressure Type
- Differential
- Electrical Rating
- 1/4 hp @ 250V AC, 15 A @ 125, 250, 480V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC
- Minimum Operating Temperature
- -40 Degrees F
- Input Voltage
- 120 to 480V AC, 125V AC, 250V AC
- Mounting Hole Center to Center Distance
- 3/8 in
- Number of Switches
- 1
- Maximum Pressure Rating
- 35 psi
- Maximum Operating Temperature
- 140 Degrees F
- Sample Line Connector Type
- NPT
- Minimum Pressure Setting
- 0.5 psid
- Maximum Pressure Setting
- 2 psid
Description
Differential Pressure Switch, Application HVAC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 hp @ 250V AC, 15 A @ 125, 250, 480V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC, Housing Type Standard Housing, Input Voltage 120 to 480V AC, 125V AC, 250V AC, Maximum Differential Pressure Setting 2 psid, Maximum Operating Temperature 140 Degrees F, Maximum Pressure Rating 35 psi, Maximum Pressure Setting 2 psid, Minimum Differential Pressure Setting 0.5 psid
