  5. Digital differential manometer, range -60 to 60" w.c.

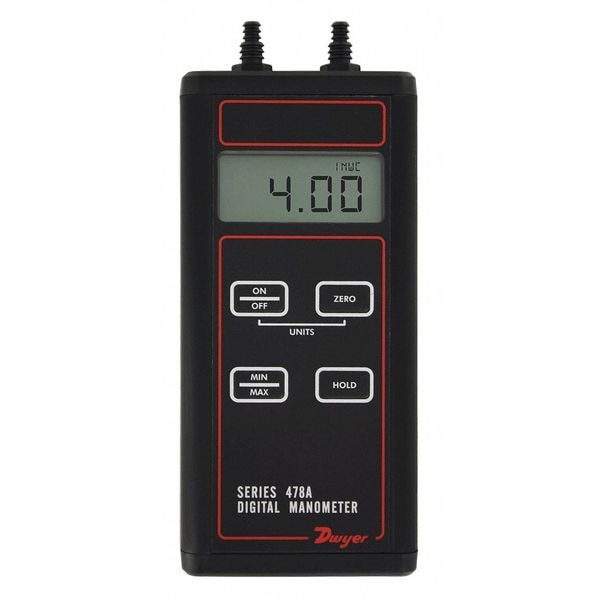

Dwyer Instruments Digital differential manometer, range -60 to 60" w.c. 478A-1 - main

Digital differential manometer, range -60 to 60" w.c.

  • Mfr # 478A-1

  • Zoro # G3304555

product price:  $331.99
/ea
Free Shipping & Returns

Key Features

Standards
CE
Accuracy
+/-1.50% of Full Scale
Pressure Accuracy
+/-1.50% of Full Scale
Battery Type
9V
Pressure Resolution
0.1 in wc
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
478A-1
Zoro #
G3304555
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
3/16 in, 1/4 in
Housing Length
2.8 in
For Tubing Diameter
3/16 in, 1/4 in
Housing Height
6.5 in
Battery Size
9V

Details

Item
Digital Manometer
Standards
CE
Accuracy
+/-1.50% of Full Scale
Pressure Accuracy
+/-1.50% of Full Scale
Battery Type
9V
Pressure Resolution
0.1 in wc
For Use With
Boot, Tubing
Pressure Range
-60 in wc to 60 in wc
Calibration Certificate Included
No
Maximum Pressure
60 in wc
Minimum Operating Temperature
0 Degrees F
Series
478A
Number of Pressures Measured
Dual, Single
Type of Pressure
Differential
Data Hold
Yes
Maximum Operating Pressure
60 in wc
Maximum Operating Temperature
140 Degrees F
Number of Connections
2
Low Battery Indicator
Yes
Operating Pressure Range
-60 to 60 in wc
NIST Traceable Certificate
No
Batteries Required
Yes
Application
Air; Compatible Gases
Batteries Included
Yes
Digital Display Features
4 Digit LCD
Auto Power Off
Yes
Min/Max Capture
Yes
Display Units
in wc
Process Connection Type
Hose Barb
Weight
0.6 lb
Minimum Pressure
-60 in wc
Housing Material
Aluminum
Manometer Type
General Purpose Digital Manometer
Includes Data Hold
Data Hold
Includes Low Battery Indicator
Low Battery Indicator
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Pressure Measurement - Minimum
-60 in wc
Digital Display Type
Backlit LCD
Operating Temperature - Minimum
0 Degrees F
Includes Min/Max Capture
Min/Max Capture
Operating Temperature - Maximum
140 Degrees F
Includes Batteries
Batteries Included
Number of Digits
4
Pressure Measurement - Maximum
60 in wc
Pressure Type Measured
Differential
Pressure Stages Measured
Dual, Single
Number of Process Connections
2

Description

Digital Manometer, Maximum Pressure 60 in wc, Minimum Pressure -60 in wc, Accuracy +/-1.50 Percent of Full Scale, Process Connection Size 3/16 in, 1/4 in, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features 4 Digit LCD, NIST Traceable Certificate No, Series 478A, Application Air; Compatible Gases, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included No, Data Hold Yes, Display Units in wc, For Tubing Diameter 3/16 in, 1/4 in
