Shop DWYER INSTRUMENTS

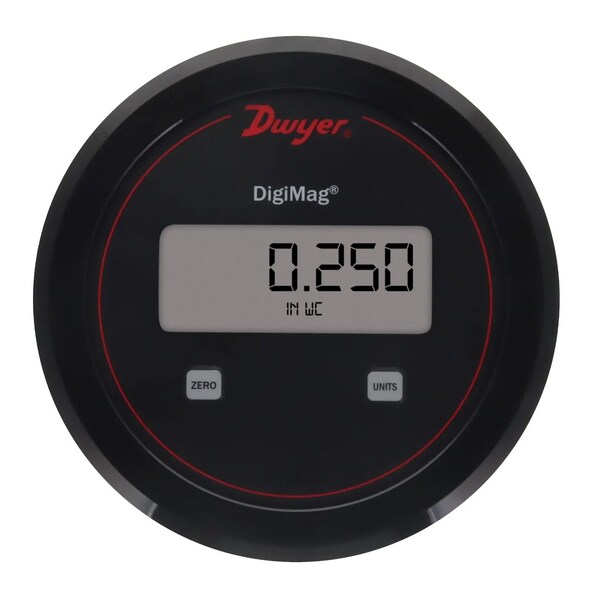

Digital Pressure Transmitter, 0.5 in wc

  • Mfr # DM-203
  • Zoro # G307143544
product price:
$
180.99
/ea
Free Shipping & Returns

Key Features

NEMA Enclosure Rating
4X
Electrical Connection
Screw Terminals
Pressure Measurement - Maximum
0.5 in wc
Burst Pressure
6 psi
IP Rating
IP66
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DM-203
Zoro #
G307143544
UPC #
-
Country of Origin
United States
NEMA Enclosure Rating
4X
Electrical Connection
Screw Terminals
Pressure Measurement - Maximum
0.5 in wc
Burst Pressure
6 psi
Item
Digital Pressure Transmitter
IP Rating
IP66
Standards
CE
Process Media Temperature - Minimum
-4 Degrees F
Input Voltage
10 to 35V DC
Process Connection Location
Side
Number of Wires
2
Output Power
4 to 20mA
Housing Material
Plastic
Process Media Temperature - Maximum
158 Degrees F
Process Connection Type
Hose Barb
Loop Resistance - Maximum
1250 Ohm
Digital Display Screen Type
LCD
Accuracy
+/-1.00% of Full Scale
Pressure Measurement - Minimum
-0.5 in wc
Display Units
in wc
Series
Series DM
Response Time
0 sec, 4 sec
Display Type
Digital
Thermal Error
0.02% Degrees F
Features
Fast and Easy Setup and Calibration with Push-button Zero and Span Controls, Reduced Installation Time Through Zero and Span Controls that Provides Quick and Easy Calibration, Reduces Upgrade Installation Costs and Simplifies Field Upgrade from a Magnehelic Gage, as Both use the Same Diameter Cutout

Description

Digital Pressure Transmitter, Output 4 to 20mA, Maximum Pressure 6 psi, Accuracy +/-1.00 Percent of Full Scale, Number of Wires 2, Power Required 10 to 35V DC, Process Connection Size 1/8 in, 3/16 in, 5 mm, 6 mm, 1/4 in, Process Connection Type Hose Barb, IP Rating IP66, NEMA Rating NEMA 4X, Series Series DM, Wiring Entry Control Loop, Electrical Connections Screw Terminals, Display Type Digital, Housing Material Plastic, Burst Pressure 6 psi, Connection Location Side, Diameter 5 in
