  11. Digital Temperature Controller, 24 mm L

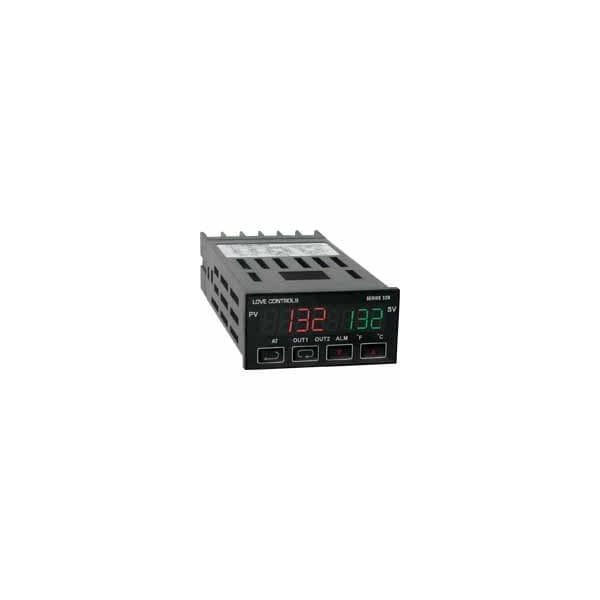

Dwyer Instruments Digital Temperature Controller, 24 mm L 32B-23 - main

Digital Temperature Controller, 24 mm L

  • Mfr # 32B-23

  • Zoro # G209982609

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Description/Special Features
Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses
Voltage
100 to 240V AC
Sensor Type
RTD, Thermocouple
DIN Size
1/32
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
32B-23
Zoro #
G209982609
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

DIN Size
1/32
Depth
103.2 mm
Length
24 mm
Width
48 mm
Overall Length
24 mm
Overall Width
48 mm

Details

Item
Temperature Controller
Digital/Analog
Digital
Description/Special Features
Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses
Voltage
100 to 240V AC
Sensor Type
RTD, Thermocouple
Input Voltage
100 to 240V AC
Switch Function
14V, 10% to -20% (Max 40 mA) (Output 1), SPST, 3 A @ 250V AC Resistive (Output 2)
Output
Relay, Voltage Pulse
Temp. Range
32 Degrees to 122 Degrees F
Control Mode
Manual, On/Off Action, PID, Self Adjustable
Amps
3A, 40mA
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Power Consumption
5 VA
Accuracy
±0.25% span, ±1 least significant digit.
Standards
CE, cUL, RoHS, UL
Series
32B
Display
Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Control Output Ratings
Relay: SPST, 3A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Operating Temperature
32 to 122°F (0 to 50°C).
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Front Panel Rating
IP56.
Memory Backup
Nonvolatile memory.
Agency Approvals
CE, cUL, UL.
Temperature - Maximum
122 Degrees F
Product Type
Temperature Controller
Current
3 A, 40 mA
Display Type
Digital
Temperature - Minimum
32 Degrees F

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/32, Input Voltage 100 to 240V AC, Switch Function 14V, 10 Percent to -20 Percent (Max 40 mA) (Output 1), SPST, 3 A @ 250V AC Resistive (Output 2), Output Relay, Voltage Pulse, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, Self Adjustable, 3A, 40mA Amps, Length 24 mm, Width 48 mm, Depth 103.2 mm
