  11. Digital Temperature Controller, 24 mm L

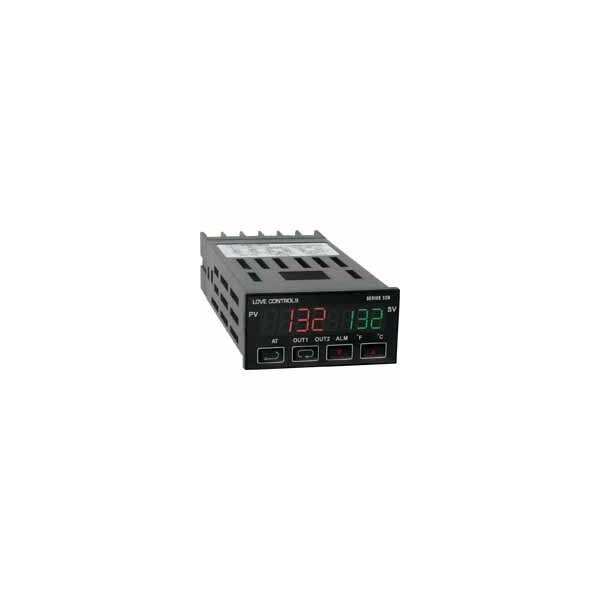

Dwyer Instruments Digital Temperature Controller, 24 mm L 32B-63 - main

Digital Temperature Controller, 24 mm L

  • Mfr # 32B-63

  • Zoro # G409982614

product price: $124.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Description/Special Features
Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses
Sensor Type
RTD, Thermocouple
Voltage
100 to 240V AC
DIN Size
1/32
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
32B-63
Zoro #
G409982614
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

DIN Size
1/32
Depth
103.2 mm
Length
24 mm
Width
48 mm
Overall Width
48 mm
Overall Length
24 mm

Details

Item
Temperature Controller
Digital/Analog
Digital
Description/Special Features
Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses
Sensor Type
RTD, Thermocouple
Voltage
100 to 240V AC
Input Voltage
100 to 240V AC
Switch Function
SPST, 3 A @ 250 VAC Resistive
Output
Linear Voltage, Relay
Temp. Range
32 Degrees to 122 Degrees F
Control Mode
Manual, On/Off Action, PID, Self Adjustable
Amps
3A
Power Consumption
5 VA
Accuracy
±0.25% span, ±1 least significant digit.
Standards
CE, cUL, RoHS, UL
Series
32B
Display
Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Control Output Ratings
Relay: SPST, 3A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Agency Approvals
CE, cUL, UL.
Operating Temperature
32 to 122°F (0 to 50°C).
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Memory Backup
Nonvolatile memory.
Front Panel Rating
IP56.
Product Type
Temperature Controller
Current
3 A
Display Type
Digital
Temperature - Minimum
32 Degrees F
Temperature - Maximum
122 Degrees F

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/32, Input Voltage 100 to 240V AC, Switch Function SPST, 3 A @ 250 VAC Resistive, Output Linear Voltage, Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, Self Adjustable, 3A Amps, Length 24 mm, Width 48 mm, Depth 103.2 mm, Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses
