  11. Digital Temperature Controller, 47.75mm L

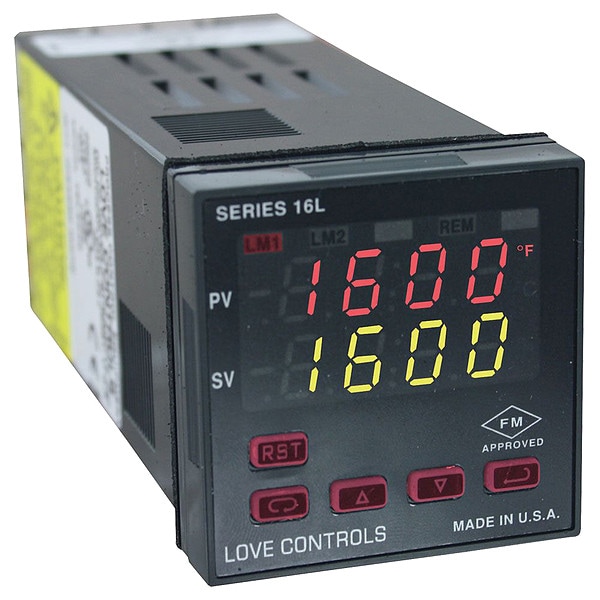

Dwyer Instruments Digital Temperature Controller, 47.75mm L 16L2034 - main

Digital Temperature Controller, 47.75mm L

  • Mfr # 16L2034

  • Zoro # G709982574

product price: $450.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Description/Special Features
7 Segment, Non-Volatile Memory, Two 4 Digit
Voltage
100 to 240V AC
Sensor Type
RTD, Thermocouple
Input Voltage
100 to 240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16L2034
Zoro #
G709982574
UPC #
-
Country of Origin
United States

Dimensions

Depth
133.05 mm
Length
47.75 mm
Width
47.75 mm
Overall Width
47 3/4 mm
Overall Length
47 3/4 mm

Details

Item
Temperature Controller
Digital/Analog
Digital
Description/Special Features
7 Segment, Non-Volatile Memory, Two 4 Digit
Voltage
100 to 240V AC
Sensor Type
RTD, Thermocouple
Input Voltage
100 to 240V AC
Switch Function
SPST, 3 A @ 240V AC Resistive
Output
NC Relay, NO Relay
Temp. Range
14 Degrees to 131 Degrees F
Control Mode
Universal Input
Amps
1.5A, 3.5A
Standards
cULus, FM
Accuracy
±0.25% of span, ±1 least significant digit.
Series
16L
Features
Remote or integral reset button; Peak and valley temperature indication; Open sensor protection
Power Consumption
5 VA
Display
Two 4 digit, 7 segment 0.3" (7.62 mm) high LEDs.
Memory Backup
Nonvolatile memory. No batteries required.
Power Requirements
100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20%.
Front Panel Rating
NEMA 4X (IP66).
Temperature Limits
14 to 131°F (-10 to 55°C).
Agency Approvals
FM, cULus.
Display Type
Digital
Temperature - Minimum
14 Degrees F
Current
1.5 A, 3.5 A
Temperature - Maximum
131 Degrees F
Product Type
Temperature Controller

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, Input Voltage 100 to 240V AC, Switch Function SPST, 3 A @ 240V AC Resistive, Output NC Relay, NO Relay, Temp. Range 14 Degrees to 131 Degrees F, Control Mode Universal Input, 1.5A, 3.5A Amps, Length 47.75 mm, Width 47.75 mm, Depth 133.05 mm, 7 Segment, Non-Volatile Memory, Two 4 Digit, Power Consumption 5 VA, Standards cULus, FM, Series 16L
