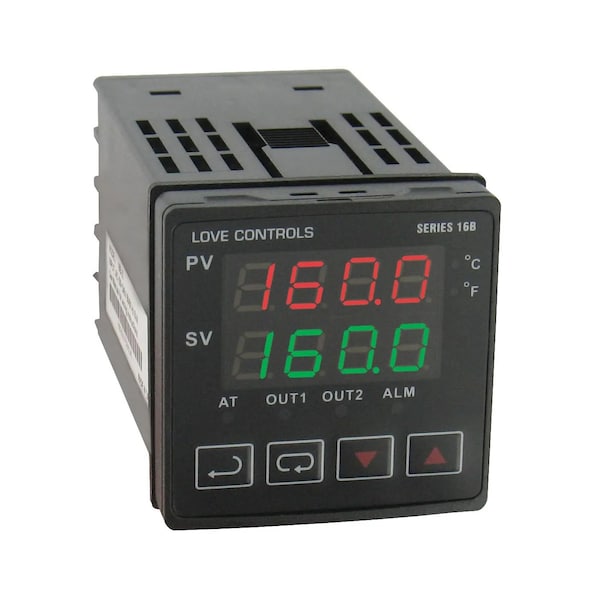

Digital Temperature Controller, 48 mm L
- Mfr # 16B-33-LV
- Zoro # G107149074
product price:Â
$
198.99
/ea
Free Shipping & Returns
Key Features
Display
Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Accuracy
±0.25% span, ±1 least significant digit.
Power Consumption
5 VA max.
Front Panel Rating
IP56.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16B-33-LV
- Zoro #
- G107149074
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Display
- Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
- Features
- Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
- Accuracy
- ±0.25% span, ±1 least significant digit.
- Power Consumption
- 5 VA max.
- Front Panel Rating
- IP56.
- Inputs
- Thermocouple, RTD, DC voltages or DC current.
- Memory Backup
- Nonvolatile memory.
- Control Output Ratings
- Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
- Operating Temperature
- 32 to 122°F (0 to 50°C).
- Agency Approvals
- CE, cUL, UL.
- Communication
- RS-485 Modbus® A-5-11/RTU communication protocol.
Description
Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/16, Input Voltage 24V DC, Switch Function SPST, 5 A @ 250V AC Resistive, Output (2) Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, Self Adjustable, 5A Amps, Length 48 mm, Width 48 mm, Depth 89.5 mm, Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses, Power Consumption 5 VA
