  11. Digital Temperature Controller, 97.6 mm L

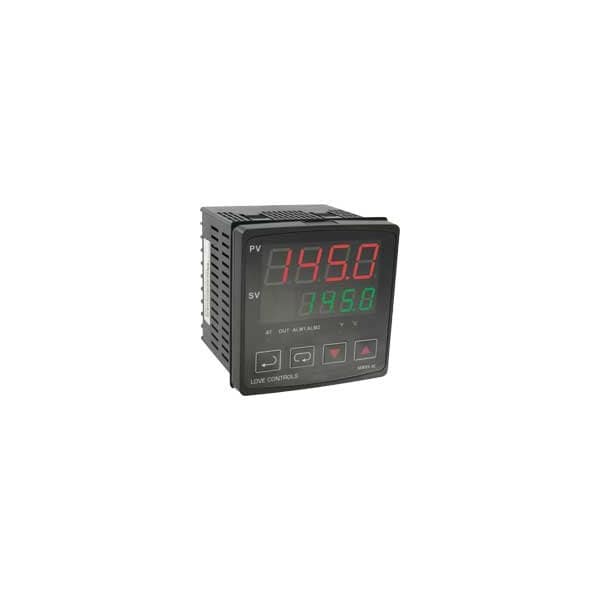

Dwyer Instruments Digital Temperature Controller, 97.6 mm L 4C-2 - main

Digital Temperature Controller, 97.6 mm L

  • Mfr # 4C-2

  • Zoro # G809982597

product price: $169.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Description/Special Features
7 Segment, RS-485 Communication, The Alarm Outputs can be Configured from 12 Different Preprogrammed Settings, Two 4-Digit, Two Additional Alarm Outputs
Sensor Type
RTD, Thermocouple
Voltage
100 to 240V AC
DIN Size
1/4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4C-2
Zoro #
G809982597
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

DIN Size
1/4
Width
96 mm
Length
97.6 mm
Depth
95 mm
Overall Width
96 mm
Overall Length
97 5/8 mm

Details

Item
Temperature Controller
Digital/Analog
Digital
Description/Special Features
7 Segment, RS-485 Communication, The Alarm Outputs can be Configured from 12 Different Preprogrammed Settings, Two 4-Digit, Two Additional Alarm Outputs
Sensor Type
RTD, Thermocouple
Voltage
100 to 240V AC
Input Voltage
100 to 240V AC
Switch Function
14V, 10% to -20% (Max 40 mA)
Output
Voltage Pulse
Temp. Range
32 Degrees to 122 Degrees F
Control Mode
Manual, On/Off Action, PID
Amps
40mA
Display
Two 4-digit, 7 segment LED's. PV: red .75" H (19 mm); SV: green .5" H (12.7 mm).
Power Consumption
5 VA
Standards
CE, cUL, RoHS, UL
Series
4C
Accuracy
0.25% span, ±1 least significant digit.
Features
Universal input accepts RTD or thermocouple sensors; On/Off, PID, or manual output control; RS-485 standard on all models
Memory Backup
Nonvolatile memory.
Control Output Ratings
Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Front Panel Rating
IP56.
Operating Temperature
32 to 122°F (0 to 50°C).
Agency Approvals
CE, cUL, UL.
Communication
RS-485 Modbus® ASCII communication protocol.
Inputs
Thermocouple or RTD (see Catalog page).
Display Type
Digital
Temperature - Minimum
32 Degrees F
Temperature - Maximum
122 Degrees F
Current
40 mA
Product Type
Temperature Controller

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/4, Input Voltage 100 to 240V AC, Switch Function 14V, 10 Percent to -20 Percent (Max 40 mA), Output Voltage Pulse, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, 40mA Amps, Length 97.6 mm, Width 96 mm, Depth 95 mm, 7 Segment, RS-485 Communication, The Alarm Outputs can be Configured from 12 Different Preprogrammed Settings, Two 4-Digit, Two Additional Alarm Outputs
